YG1
TAP M20 HAND TAP SET
TAP M20 HAND TAP SET
Regular price
$99.94 NZD
Regular price
Sale price
$99.94 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

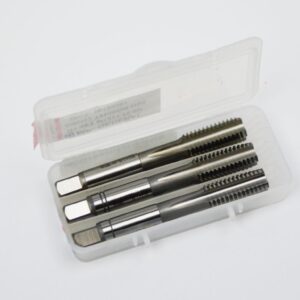

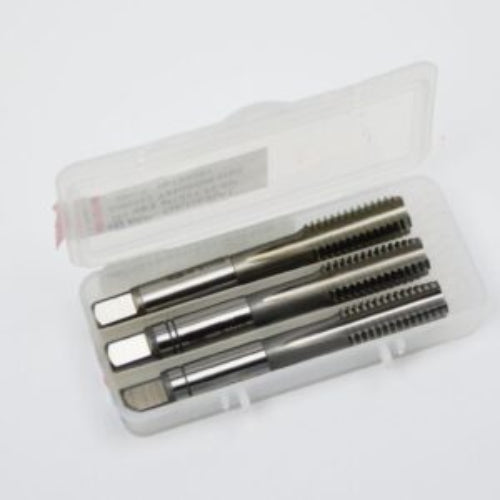

METRIC COARSE - SET of 3 HAND TAPS (First / Intermediate / Bottoming)
| ITEM # | BRANDNAME: | MANUFACTURERNO: |
| YG19904329 | YG1 | 9904329 |
Product Specifications
| Applicable Material | | Steel | Cast Iron | Non Ferrous | | Flute Count (NOF) | 2 |
| Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Deep Through Hole | Taps for Short Blind Hole | Taps for Short Through Hole | | Cutting Edge Material | HSS |
| Thread Diameter Size (TDZ) | M20 | Measurement Type | Metric |
| Pitch in mm | 2.5 mm | Thread Cutting Part Length (THL) | 32 mm |
| Tool Type | Hand Taps | Thread Pitch (TP) | 2.5 mm |
| Flute Length | 32 mm | Thread Size | M20 × 2.5 |
| Overall Length (OAL) | 95 mm | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Unit | M |
Product Features
| FamilyName T7109 |
| PackSize 1 |
| Family Description METRIC COARSE - SET of 3 HAND TAPS (First / Intermediate / Bottoming) |
| Remarks T7109709 |
