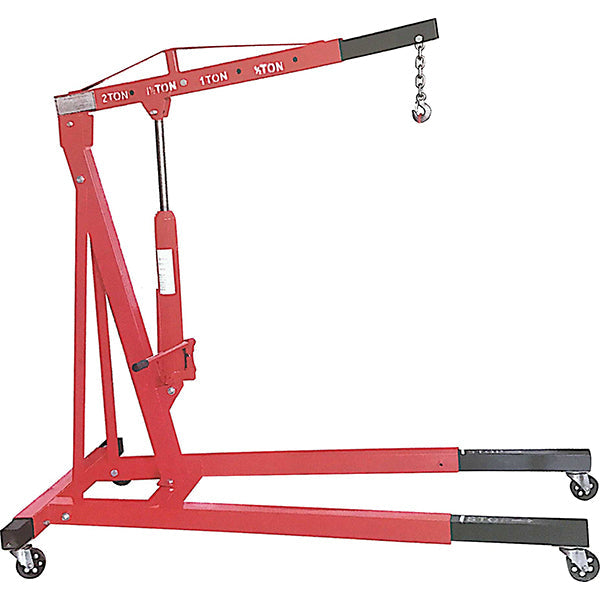

ProEquip Workshop Engine Crane 2 Ton

PE1149 | 2.0T Capacity Workshop Engine Crane
For raising lowering and transporting of automotive enginesand other heavy shop loads. Includes long reach ram chainand hook with retractable legs.
Features:• Heavy duty welded construction with rugged reinforcedtubular steel.• Metered control release valve for lowering boom at aprecisely-controlled rate of speed.• Special 8 Ton hydraulic long reach ram is equipped with apatented built-in by-pass mechanism.
Specification:• Maximum Capacity: 2 Ton (1800kg)• Adjustable Reinforced Boom – 1/2 Ton 1 Ton 1-1/2 Ton & 2Ton• Boom Length – 1/2 Ton (1830mm) 1 Ton (1600mm) 1-1/2 Ton(1380mm) & 2 Ton (1149mm)• Max. Hook Height – 1/2 Ton (2180mm) 1 Ton (2045mm) 1-1/2Ton (1900mm) & 2 Ton (1760mm)• Lifting Range – 0 to 2180mm (at 1/2 Ton Lift)• 4 cast iron swivel wheel castors• Clevis grab hook with safety latch
• Base Length: 1560-240mm• Base Width (Front): 800-990mm• Base Width (Rear): 695-1200mm
Manufactured to ANSI Specification. Approved to ASMEPALD-2009.
