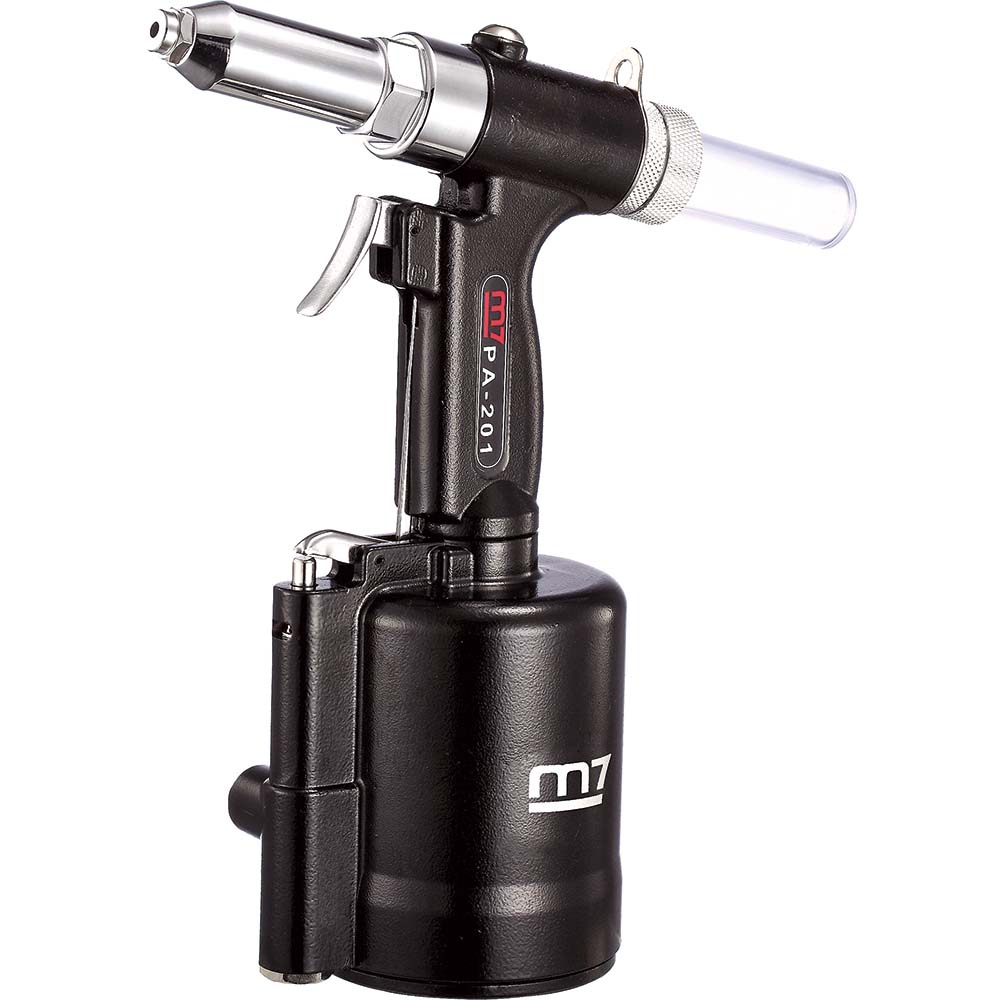

M7 Air Hydraulic Riveter 14mm Stroke

M7-PA201 | M7 Hydraulic Air Riveter 14mm Stroke
FEATURES• Durable alloy steel chuck jaws are now equipped to improveperformance and lifetime.• Mirror finished cylinder and piston brings less frictionand allows the rivets to be released quickly.• Performs well in all operating directions or hard-to-reacharea.• A powerful durable high-speed tool for assembly line andintensive use.• It is necessary to refer to the specification table ofriveters prior to purchase.• Superb quality pneumatic air riveter.
SPECIFICATIONS• Traction Power: 3534lb.f / 1603kgf• Stroke Length: 14mm• Capacity: 2.4-6.4mm• Air Requirement: 90PSI / 2.32CFM• Air Inlet: 1/4• Net Weight: 1.8kg• Sound Pressure: 79.7 dBA• Vibration Level: 0.5m/s²• Aluminium Rivet & Aluminium Mandrel: 1/4 (6.4mm)• Aluminium Rivet & Steel Mandrel: 1/4 (6.4mm)• Steel Rivet & Steel Mandrel: 1/4 (6.4mm)• Stainless Rivet & Steel Mandrel: 3/16 (4.8mm)• Stainless Rivet & Stainless Mandrel: 3/16 (4.8mm)• Includes Mandrel Sizes 2.4 3.2 4.0 4.8 6.0 & 6.4mm
