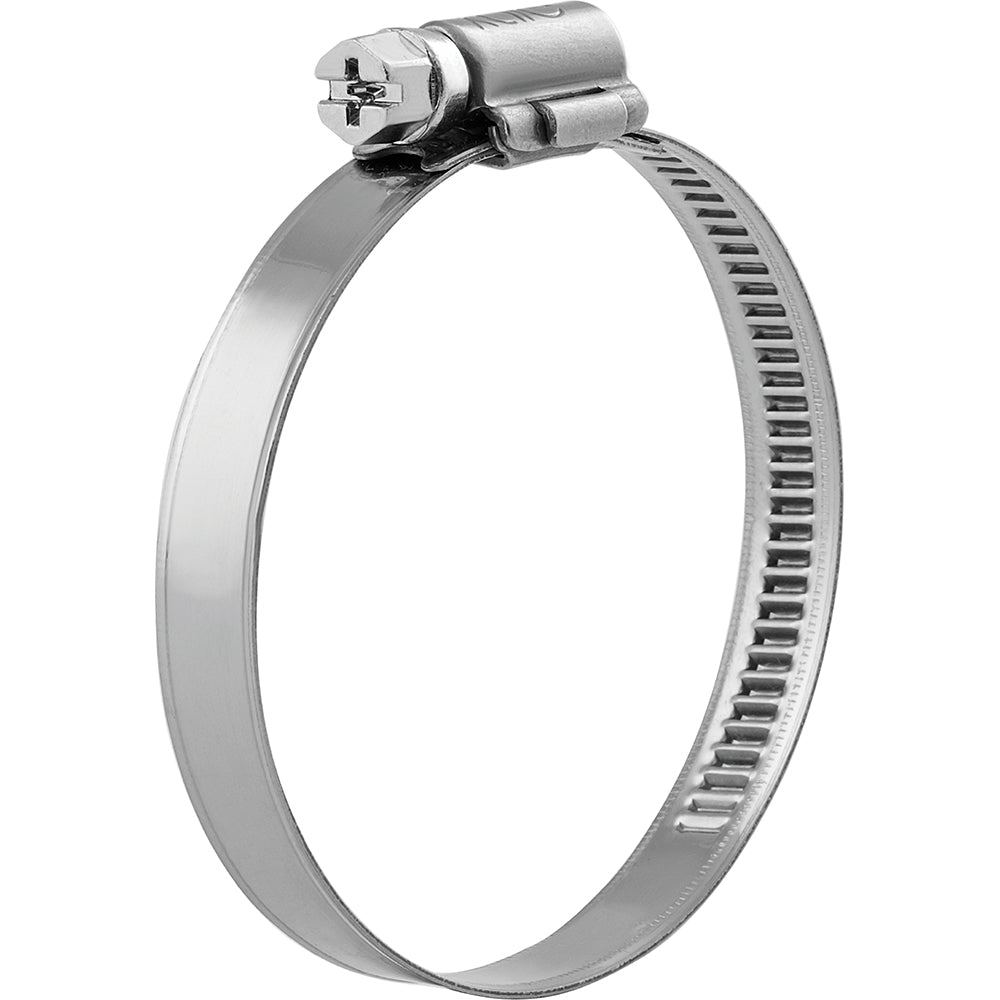

Kale WD9 8-16mm W4 (10pc)

WD9816W4 - 9mm Band Width Worm Drive Clamp
WD9 | 8-16mm capacity | W4
Features:• Light product easy assembly and space saving withcompact housing and screw design.• Stronger and durable with the mechanically locked singlepiece design of housing.• Burr-free and convex band edges.• 100% traceability on the product.• High clamping force with low tightening torque.
Technical Spec:• Band Width - 9mm• Capacity (min - max) - Ø 8-16mm• Tightening Torque (max) - 2.5Nm (1)• Screw Housing Length - 20mm• Grade W4 - Stainless Screw Band & Housing (2)• Corrosion Resistance (min.Hour) IS0 9227 - 240• Screw Head - PH/FL | 7mm Hex
(1) Recommended tightening torque. Recommended tighteningspeed 300 - 350 rpm(2) Screw - 1.4567 Stainless DIN EN-10088-3 or equivalent |Housing & Band - 1.4301 Stainless DIN EN-10088-2 orequivalent
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001management systems as per the expectations of the globalautomotive industry.
