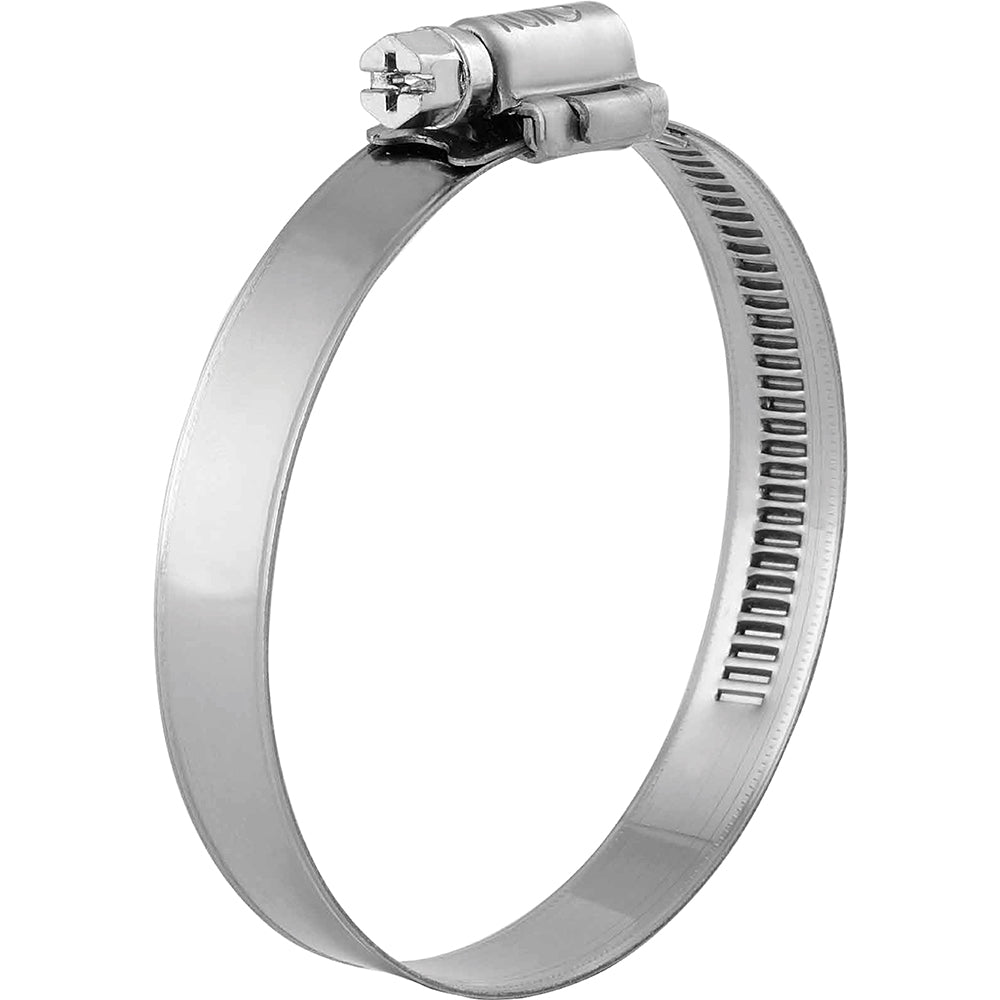

Kale WD12 100-120mm W3 (Ea)

WD12100120W3 - 12mm Band Width Worm Drive Clamp
WD12 | 100-120mm capacity | W3
Features:• Light product easy assembly and space saving withcompact housing and screw design.• Stronger and durable with the mechanically locked singlepiece design of housing.• Burr-free and convex band edges.• 100% traceability on the product.• High clamping force with low tightening torque.
Technical Spec:• Band Width - 12mm• Capacity (min - max) - Ø 100-120mm• Tightening Torque (max) - 5.0Nm (1)• Screw Housing Length - 24mm• Grade W3 - Stainless Screw Band & Housing (2)• Corrosion Resistance (min.Hour) IS0 9227 - 200 (3)• Screw Head - FL | 7mm Hex
(1) Recommended tightening torque. Recommended tighteningspeed 300 - 350 rpm(2) Screw - 1.4016 Stainless DIN EN-10088-3 or equivalent |Housing & Band - 1.4016 Stainless DIN EN-10088-2 orequivalent(3) 10% red rust allowed on the total surface of W3products after salt spray test
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001management systems as per the expectations of the globalautomotive industry.
