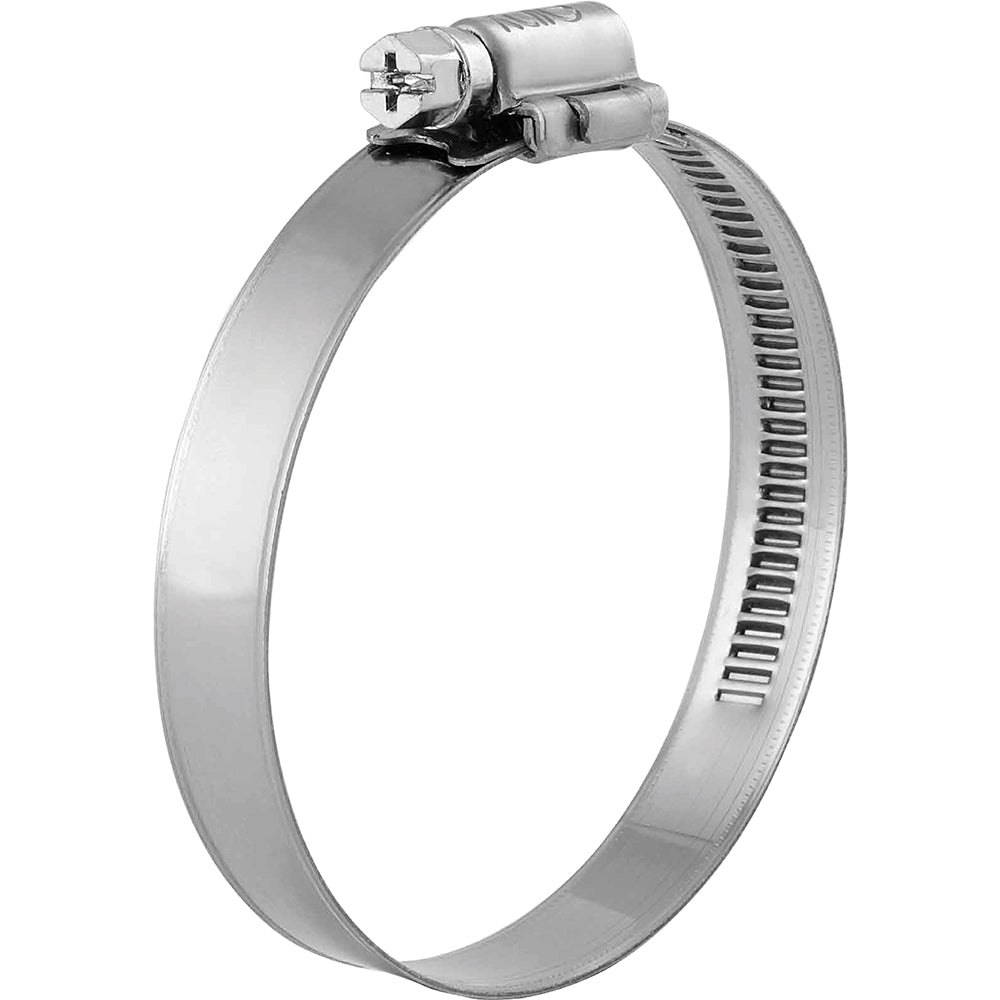

WD12100120W1 | Kale WD12 100-120mm W1 (10pc)
Worm Drive 12 | 100-120mm Capacity | W1
Features:• Light product easy assembly and space saving withcompact housing and screw design.• Stronger and durable with the mechanically locked singlepiece design of housing.• Burr-free and convex band edges.• 100% traceability on the product.• High clamping force with low tightening torque.• Higher tightening torque and clamping force with 12mmband width.
Technical Spec:• Band Width - 12mm• Capacity (min - max) - Ø 100-120mm• Tightening Torque (max) - 5.0Nm (1)• Screw Housing Length - 24mm• Grade W1 - Screw(Zinc Plated) Band(Zinc AluminiumPlated) & Housing(Zinc Plated)• Corrosion Resistance (min.Hour) IS0 9227 - 72• Screw Head - FL | 7mm Hex
(1) Recommended tightening torque. Recommended tighteningspeed 300 - 350 rpm(2) Screw & Housing (Zinc Plated) | Band – Mild Steel (ZincPlated)
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001management systems as per the expectations of the globalautomotive industry.
Worm Drive 12 | 100-120mm Capacity | W1
Features:• Light product easy assembly and space saving withcompact housing and screw design.• Stronger and durable with the mechanically locked singlepiece design of housing.• Burr-free and convex band edges.• 100% traceability on the product.• High clamping force with low tightening torque.• Higher tightening torque and clamping force with 12mmband width.
Technical Spec:• Band Width - 12mm• Capacity (min - max) - Ø 100-120mm• Tightening Torque (max) - 5.0Nm (1)• Screw Housing Length - 24mm• Grade W1 - Screw(Zinc Plated) Band(Zinc AluminiumPlated) & Housing(Zinc Plated)• Corrosion Resistance (min.Hour) IS0 9227 - 72• Screw Head - FL | 7mm Hex
(1) Recommended tightening torque. Recommended tighteningspeed 300 - 350 rpm(2) Screw & Housing (Zinc Plated) | Band – Mild Steel (ZincPlated)
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001management systems as per the expectations of the globalautomotive industry.
