Eagle Eye Supply

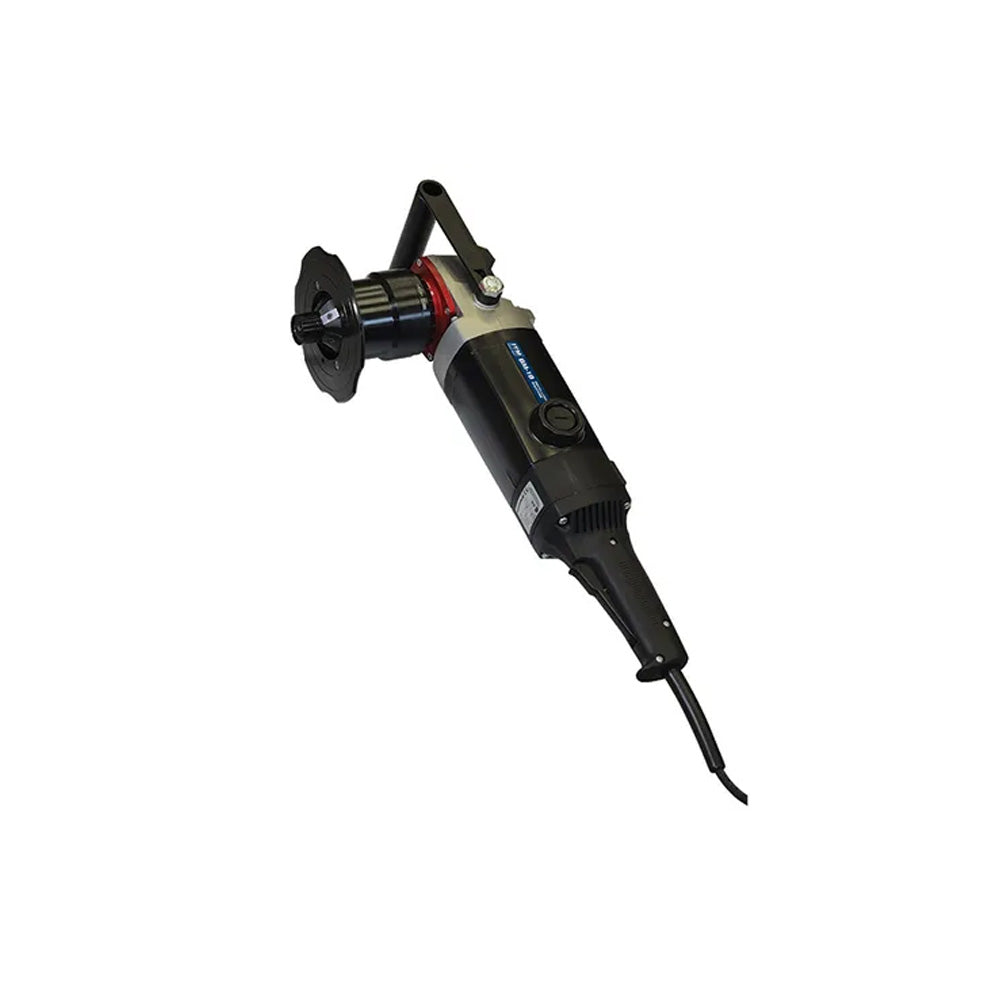

ITM Portable Beveller, Max Bevel Width 18mm, 240V Motor
ITM Portable Beveller, Max Bevel Width 18mm, 240V Motor
Regular price
$4,204.77 NZD
Regular price
Sale price
$4,204.77 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
WA-BM18 | ITM Portable Beveller Max Bevel Width 18mm 240VMotor Does Not Include Milling Head Or Cutting Inserts
FEATURES• Powerful electric motor• Maximum 18mm bevel width (more than one pass may berequired)• Mill edges of plates and pipes made of steel aluminiumalloys brass or plastic• Bevel materials with minimum thickness of 1.5mm• Continuous bevel width adjustment• New more durable milling heads with hexagonal fixing• Easy replacement of milling head• Rounding inserts R2 R3 R4 or R5 available• 4-sided indexable cutting inserts (sold separately)
STANDARD SET INCLUDES:• WA-BM18 bevelling machine without milling head• Plastic box• 32mm flat wrench• Allen wrench hex s=6• Does not include milling head• Contact block• 6mm hex wrench• Operator’s manual
SPECIFICATIONS• Power: 2200 W• Spindle Speed (Without Load): 1800 - 5850 rpm• Maximum Bevel Width: 18mm• Bevel Angle (Depending On Milling Head): B = 22.5° 30°37.5° 45° 50° 55° 60°• Minimum Workpiece Thickness: 2mm• Minimal Diameter Of Countersinking: ca 40mm• Rounding Edges: R2 R3 R4 R5• Dimensions (L x W x H): 585mm × 156mm × 238mm• Weight (Without Milling Head): 10kg
FEATURES• Powerful electric motor• Maximum 18mm bevel width (more than one pass may berequired)• Mill edges of plates and pipes made of steel aluminiumalloys brass or plastic• Bevel materials with minimum thickness of 1.5mm• Continuous bevel width adjustment• New more durable milling heads with hexagonal fixing• Easy replacement of milling head• Rounding inserts R2 R3 R4 or R5 available• 4-sided indexable cutting inserts (sold separately)
STANDARD SET INCLUDES:• WA-BM18 bevelling machine without milling head• Plastic box• 32mm flat wrench• Allen wrench hex s=6• Does not include milling head• Contact block• 6mm hex wrench• Operator’s manual
SPECIFICATIONS• Power: 2200 W• Spindle Speed (Without Load): 1800 - 5850 rpm• Maximum Bevel Width: 18mm• Bevel Angle (Depending On Milling Head): B = 22.5° 30°37.5° 45° 50° 55° 60°• Minimum Workpiece Thickness: 2mm• Minimal Diameter Of Countersinking: ca 40mm• Rounding Edges: R2 R3 R4 R5• Dimensions (L x W x H): 585mm × 156mm × 238mm• Weight (Without Milling Head): 10kg
