Eagle Eye Supply
ITM G80 Lifting Point-Oblong Eye Bolt-M36-12.8 T
ITM G80 Lifting Point-Oblong Eye Bolt-M36-12.8 T
Regular price
$703.47 NZD
Regular price
Sale price
$703.47 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9812-04036 | ITM G80 Lifting Point-Oblong EyeBolt-M36-12.8 T
Features• Premium-grade heat treated alloy steel• Specifications batch and brand markings as per AustralianStandards requirements• Tested and certified to AS 3776

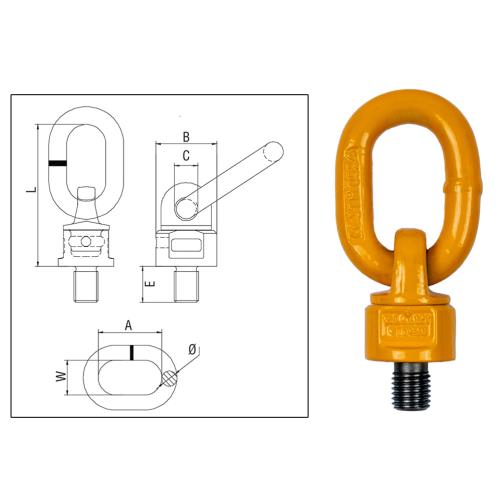

Specifications• W.L.L. 0°: 12.8T• W.L.L. 90°: 8T• Thread: M36• Dimension A: 115mm• Dimension B: 80mm• Dimension C: 28mm• Dimension E: 50mm• Dimension L: 203mm• Dimension W: 50mm• Dimension Ø: 22.5mm
Features• Premium-grade heat treated alloy steel• Specifications batch and brand markings as per AustralianStandards requirements• Tested and certified to AS 3776
Specifications• W.L.L. 0°: 12.8T• W.L.L. 90°: 8T• Thread: M36• Dimension A: 115mm• Dimension B: 80mm• Dimension C: 28mm• Dimension E: 50mm• Dimension L: 203mm• Dimension W: 50mm• Dimension Ø: 22.5mm
