ITM Electric Hoist-415V-5 Ton-3 Meter Lift
ITM Electric Hoist-415V-5 Ton-3 Meter Lift
Regular price
$7,612.36 NZD
Regular price
Sale price
$7,612.36 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9003-05003 | ITM Electric Hoist 415V 5 Ton 3 Meter Lift
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Dual Speed⢠Compact and light weight design⢠Weight overload limiter for safety⢠Dual-gear drive system providing smooth and quietoperation⢠Three phase 415V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied⢠Replacement Chain 7.1mm TM9810-01607-1⢠Replacement Chain 11.2mm TM9810-04011-2
Specifications⢠Rated Capacity: 5 Tonne⢠Standard Lift: 3m⢠Running Test Load: 62.5kN⢠Motor: 3000W 415V 3P⢠No. of Chain Drops: 2⢠Chain Type: Grade 80 11.2mm⢠Lift Speed: 2.7 & 0.9m/min⢠Net Weight: 151kg⢠Extra Weight Per Metre Of Extra Lift: 5.6kg

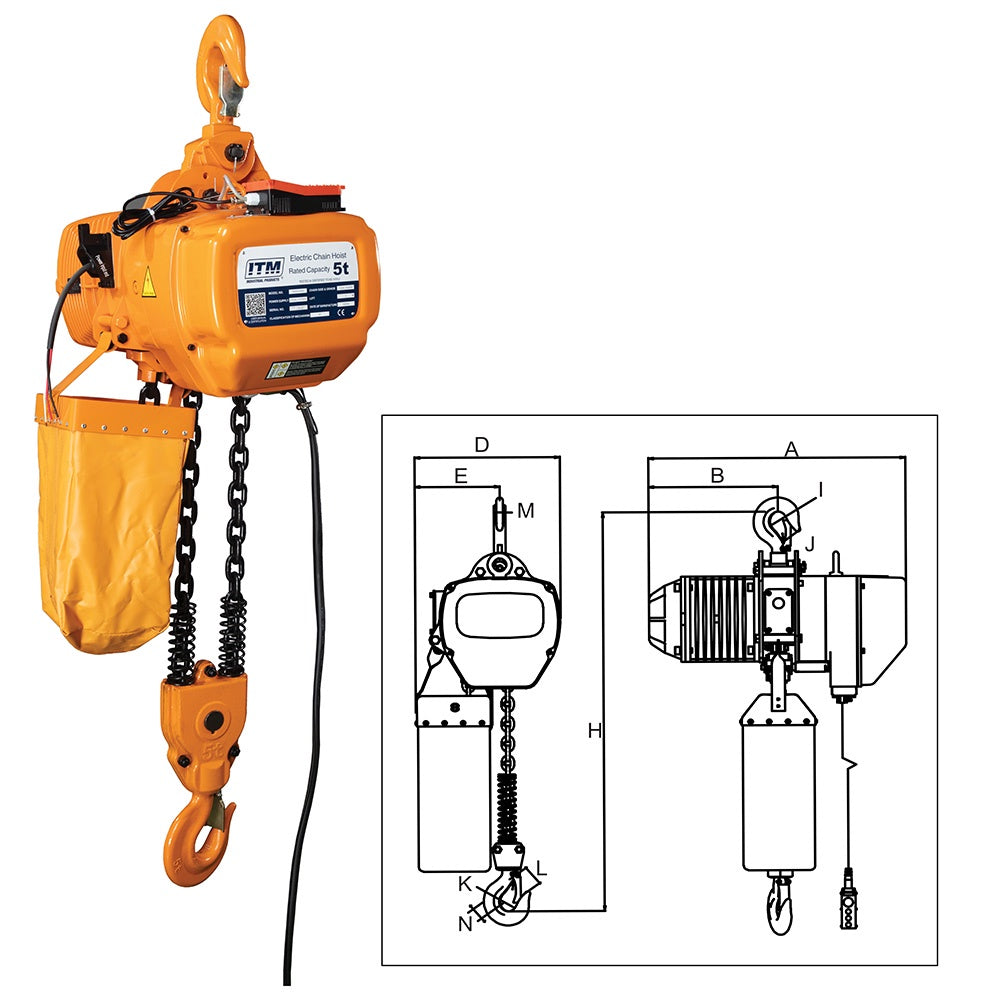

Dimensions (mm)⢠A: 670⢠B: 313⢠D: 430⢠E: 325⢠H: 1030⢠I: 60⢠J: 48⢠K: 60⢠L: 48⢠M: 43⢠N: 43
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Dual Speed⢠Compact and light weight design⢠Weight overload limiter for safety⢠Dual-gear drive system providing smooth and quietoperation⢠Three phase 415V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied⢠Replacement Chain 7.1mm TM9810-01607-1⢠Replacement Chain 11.2mm TM9810-04011-2
Specifications⢠Rated Capacity: 5 Tonne⢠Standard Lift: 3m⢠Running Test Load: 62.5kN⢠Motor: 3000W 415V 3P⢠No. of Chain Drops: 2⢠Chain Type: Grade 80 11.2mm⢠Lift Speed: 2.7 & 0.9m/min⢠Net Weight: 151kg⢠Extra Weight Per Metre Of Extra Lift: 5.6kg
Dimensions (mm)⢠A: 670⢠B: 313⢠D: 430⢠E: 325⢠H: 1030⢠I: 60⢠J: 48⢠K: 60⢠L: 48⢠M: 43⢠N: 43
