ITM Electric Hoist - 240V - 2 Ton-3 Meter Lift
ITM Electric Hoist - 240V - 2 Ton-3 Meter Lift
Regular price
$8,017.37 NZD
Regular price
Sale price
$8,017.37 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability

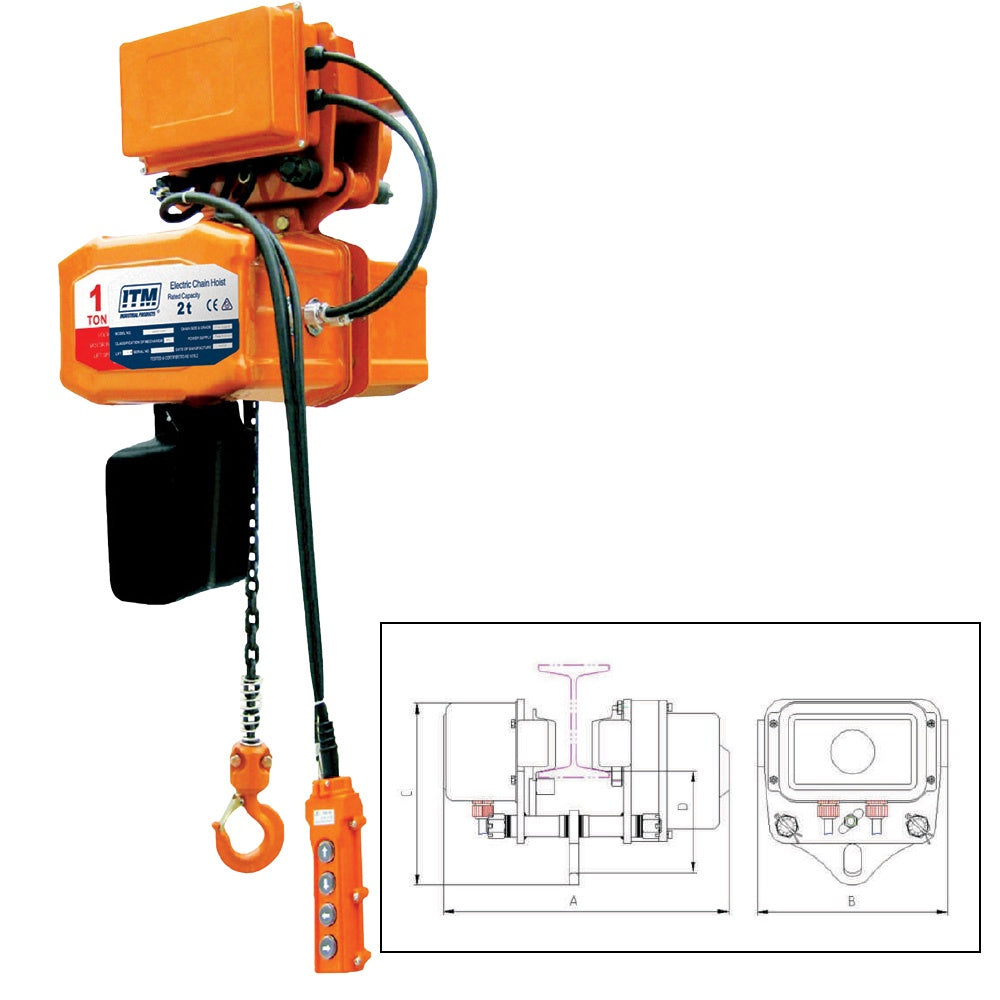

TM9005-02003 | ITM 240V Electric Hoist w/ Electric Trolley2 Ton 3 Meter Lift
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Compact and light weight design⢠Weight overload limiter for safety⢠Thermal overload motor protection⢠Single phase 240V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied
Specifications⢠Rated Capacity: 2.0 Tonne⢠Standard Lift: 3m⢠Hoist Motor: 1200w 240v 1P⢠Trolley Motor: 300w 240v 1P⢠No.Of Chain Drops: 2⢠Chain Type: Grade: 80 7.1mm⢠Lift Speed: 3m/min⢠Trolley Speed: 20m/min⢠Size of I-beam: 74-124mm⢠Min. Radius Of Curve: 1.1m⢠Net Weight: 107kg
⢠Dimensions (mm) (FRONT)⢠A: 245⢠B: 245⢠C: 124⢠D: 176⢠E: 350⢠F: 610⢠H: 630
⢠Dimensions (mm) (TOP)⢠A: 296⢠B: 270⢠C: 264⢠D: 180
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Compact and light weight design⢠Weight overload limiter for safety⢠Thermal overload motor protection⢠Single phase 240V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied
Specifications⢠Rated Capacity: 2.0 Tonne⢠Standard Lift: 3m⢠Hoist Motor: 1200w 240v 1P⢠Trolley Motor: 300w 240v 1P⢠No.Of Chain Drops: 2⢠Chain Type: Grade: 80 7.1mm⢠Lift Speed: 3m/min⢠Trolley Speed: 20m/min⢠Size of I-beam: 74-124mm⢠Min. Radius Of Curve: 1.1m⢠Net Weight: 107kg
⢠Dimensions (mm) (FRONT)⢠A: 245⢠B: 245⢠C: 124⢠D: 176⢠E: 350⢠F: 610⢠H: 630
⢠Dimensions (mm) (TOP)⢠A: 296⢠B: 270⢠C: 264⢠D: 180
