ITM Concrete Lifting Clutch Panel Lifter 5T
ITM Concrete Lifting Clutch Panel Lifter 5T
Regular price
$360.29 NZD
Regular price
Sale price
$360.29 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9814-00050 | ITM Concrete Lifting Clutch Panel Lifter 5T
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1

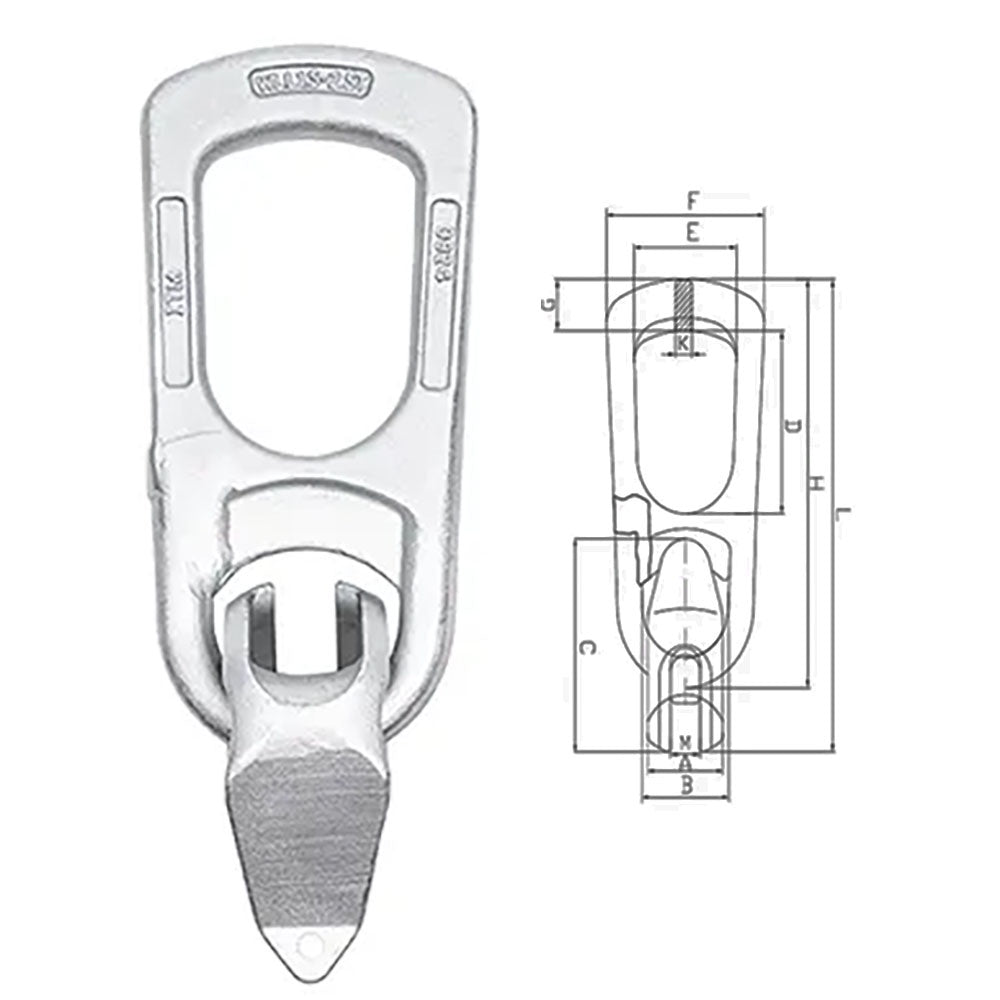

Specifications⢠W.L.L. (t): 5⢠B.L. (t): 20⢠Dimension A (mm): 55⢠Dimension B (mm): 70⢠Dimension C (mm): 133⢠Dimension D (mm): 88⢠Dimension E (mm): 69⢠Dimension F (mm): 110⢠Dimension H (mm): 242⢠Dimension M (mm): 22⢠Dimension L (mm): 282⢠Dimension G (mm): 35⢠Dimension K (mm): 18⢠Weight (kg): 3.24
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1
Specifications⢠W.L.L. (t): 5⢠B.L. (t): 20⢠Dimension A (mm): 55⢠Dimension B (mm): 70⢠Dimension C (mm): 133⢠Dimension D (mm): 88⢠Dimension E (mm): 69⢠Dimension F (mm): 110⢠Dimension H (mm): 242⢠Dimension M (mm): 22⢠Dimension L (mm): 282⢠Dimension G (mm): 35⢠Dimension K (mm): 18⢠Weight (kg): 3.24
