ITM
ITM Concrete Lifting Clutch Panel Lifter 20T
ITM Concrete Lifting Clutch Panel Lifter 20T
Regular price
$1,897.04 NZD
Regular price
Sale price
$1,897.04 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9814-00200 | ITM Concrete Lifting Clutch Panel Lifter 20T
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1

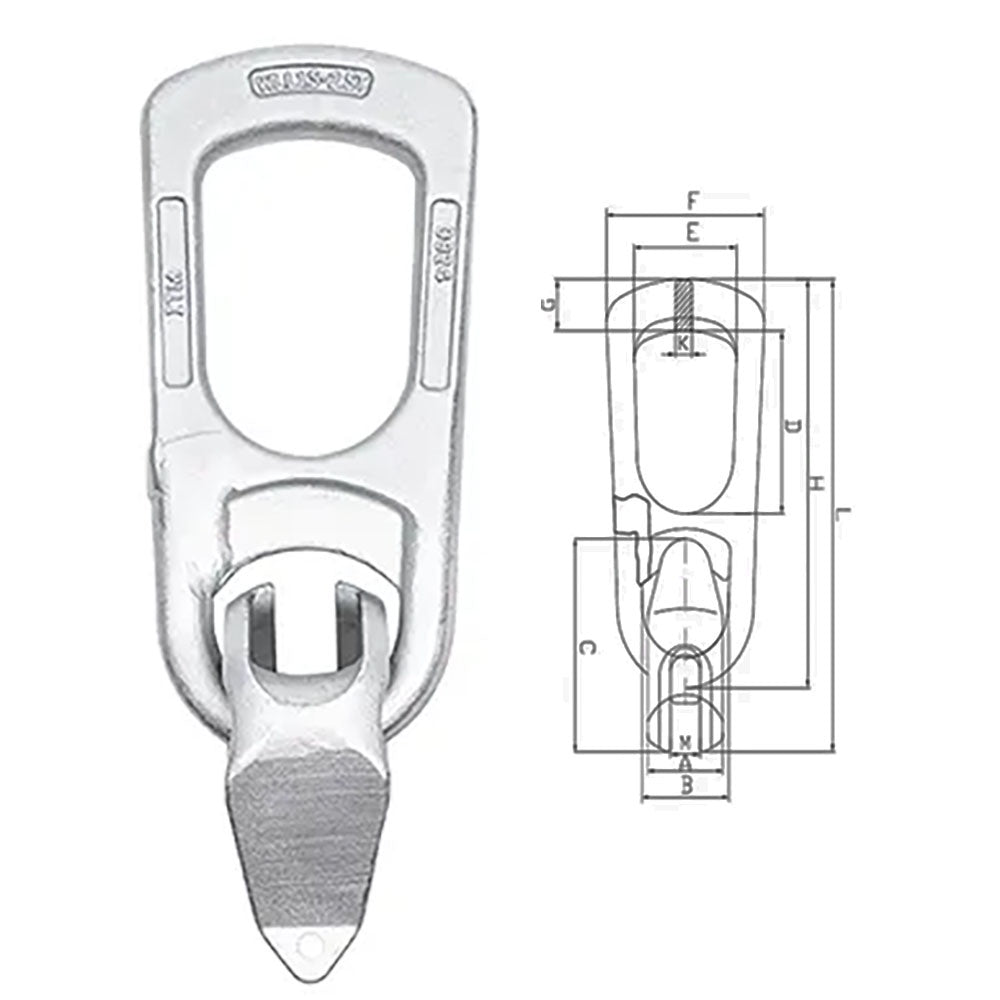

Specifications⢠W.L.L. (t): 20⢠B.L. (t): 8⢠Dimension A (mm): 110⢠Dimension B (mm): 115⢠Dimension C (mm): 224⢠Dimension D (mm): 133.5⢠Dimension E (mm): 107.5⢠Dimension F (mm): 182⢠Dimension H (mm): 437⢠Dimension M (mm): 42⢠Dimension L (mm): 497⢠Dimension G (mm): 77⢠Dimension K (mm): 40⢠Weight (kg): 20.39
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1
Specifications⢠W.L.L. (t): 20⢠B.L. (t): 8⢠Dimension A (mm): 110⢠Dimension B (mm): 115⢠Dimension C (mm): 224⢠Dimension D (mm): 133.5⢠Dimension E (mm): 107.5⢠Dimension F (mm): 182⢠Dimension H (mm): 437⢠Dimension M (mm): 42⢠Dimension L (mm): 497⢠Dimension G (mm): 77⢠Dimension K (mm): 40⢠Weight (kg): 20.39
