ITM Concrete Lifting Clutch Panel Lifter 2.5T
ITM Concrete Lifting Clutch Panel Lifter 2.5T
Regular price
$126.42 NZD
Regular price
Sale price
$126.42 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9814-00025 | ITM Concrete Lifting Clutch Panel Lifter 2.5T
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1

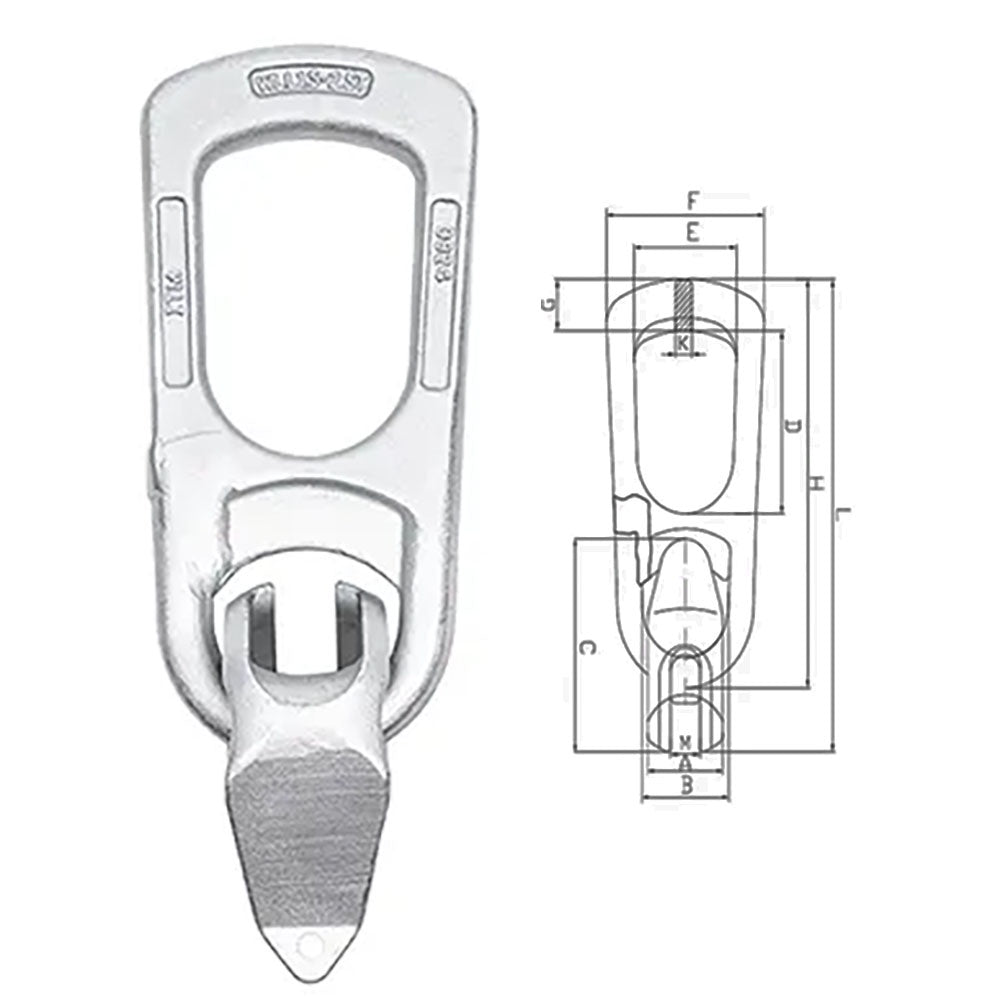

Specifications⢠W.L.L. (t): 2.5⢠B.L. (t): 10⢠Dimension A (mm): 41⢠Dimension B (mm): 49⢠Dimension C (mm): 102⢠Dimension D (mm): 85⢠Dimension E (mm): 57⢠Dimension F (mm): 88⢠Dimension H (mm): 188⢠Dimension M (mm): 16⢠Dimension L (mm): 227⢠Dimension G (mm): 27⢠Dimension K (mm): 14⢠Weight (kg): 1.3
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1
Specifications⢠W.L.L. (t): 2.5⢠B.L. (t): 10⢠Dimension A (mm): 41⢠Dimension B (mm): 49⢠Dimension C (mm): 102⢠Dimension D (mm): 85⢠Dimension E (mm): 57⢠Dimension F (mm): 88⢠Dimension H (mm): 188⢠Dimension M (mm): 16⢠Dimension L (mm): 227⢠Dimension G (mm): 27⢠Dimension K (mm): 14⢠Weight (kg): 1.3
