ITM Concrete Lifting Clutch Panel Lifter 10T
ITM Concrete Lifting Clutch Panel Lifter 10T
Regular price
$917.73 NZD
Regular price
Sale price
$917.73 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9814-00100 | ITM Concrete Lifting Clutch Panel Lifter 10T
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1

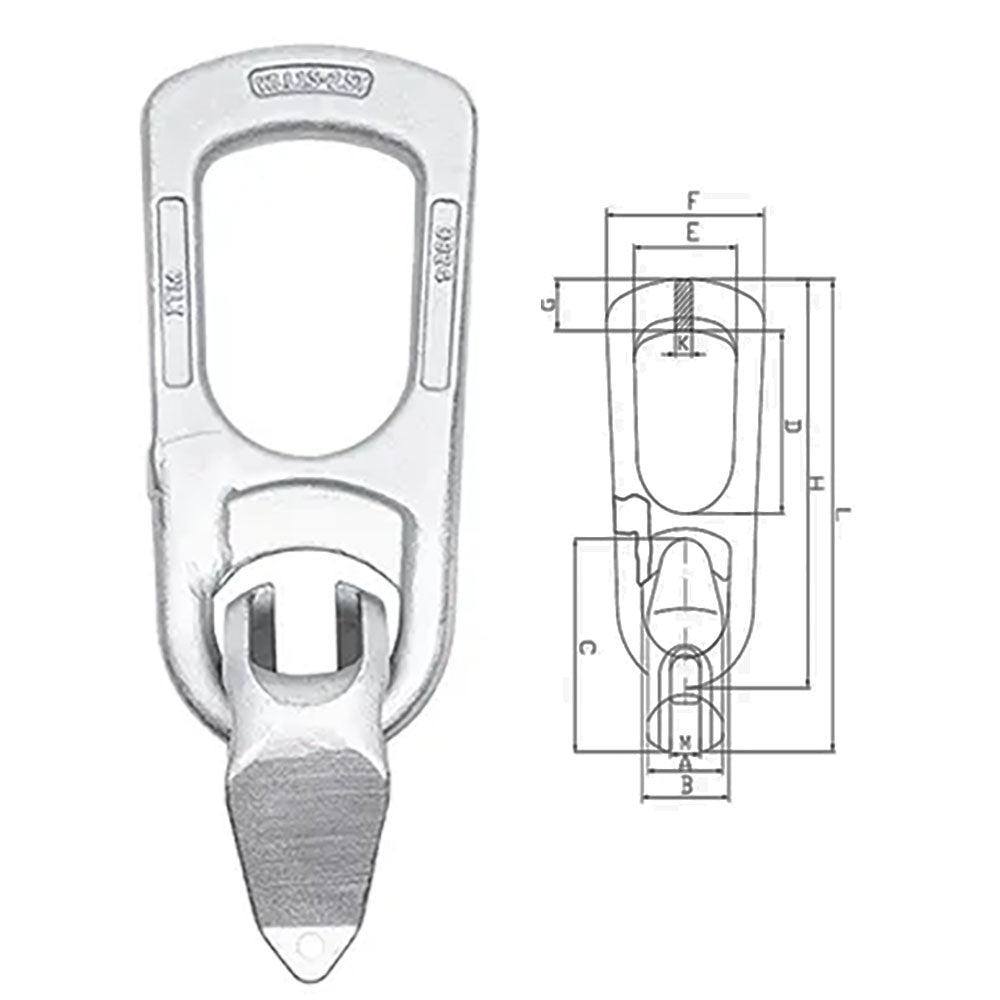

Specifications⢠W.L.L. (t): 10⢠B.L. (t): 40⢠Dimension A (mm): 73⢠Dimension B (mm): 92⢠Dimension C (mm): 176⢠Dimension D (mm): 116⢠Dimension E (mm): 83⢠Dimension F (mm): 161⢠Dimension H (mm): 342⢠Dimension M (mm): 30⢠Dimension L (mm): 391⢠Dimension G (mm): 51⢠Dimension K (mm): 27⢠Weight (kg): 9.13
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1
Specifications⢠W.L.L. (t): 10⢠B.L. (t): 40⢠Dimension A (mm): 73⢠Dimension B (mm): 92⢠Dimension C (mm): 176⢠Dimension D (mm): 116⢠Dimension E (mm): 83⢠Dimension F (mm): 161⢠Dimension H (mm): 342⢠Dimension M (mm): 30⢠Dimension L (mm): 391⢠Dimension G (mm): 51⢠Dimension K (mm): 27⢠Weight (kg): 9.13
