ITM Concrete Lifting Clutch Panel Lifter 1.3T
ITM Concrete Lifting Clutch Panel Lifter 1.3T
Regular price
$101.04 NZD
Regular price
Sale price
$101.04 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9814-00013 | ITM Concrete Lifting Clutch Panel Lifter 1.3T
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1

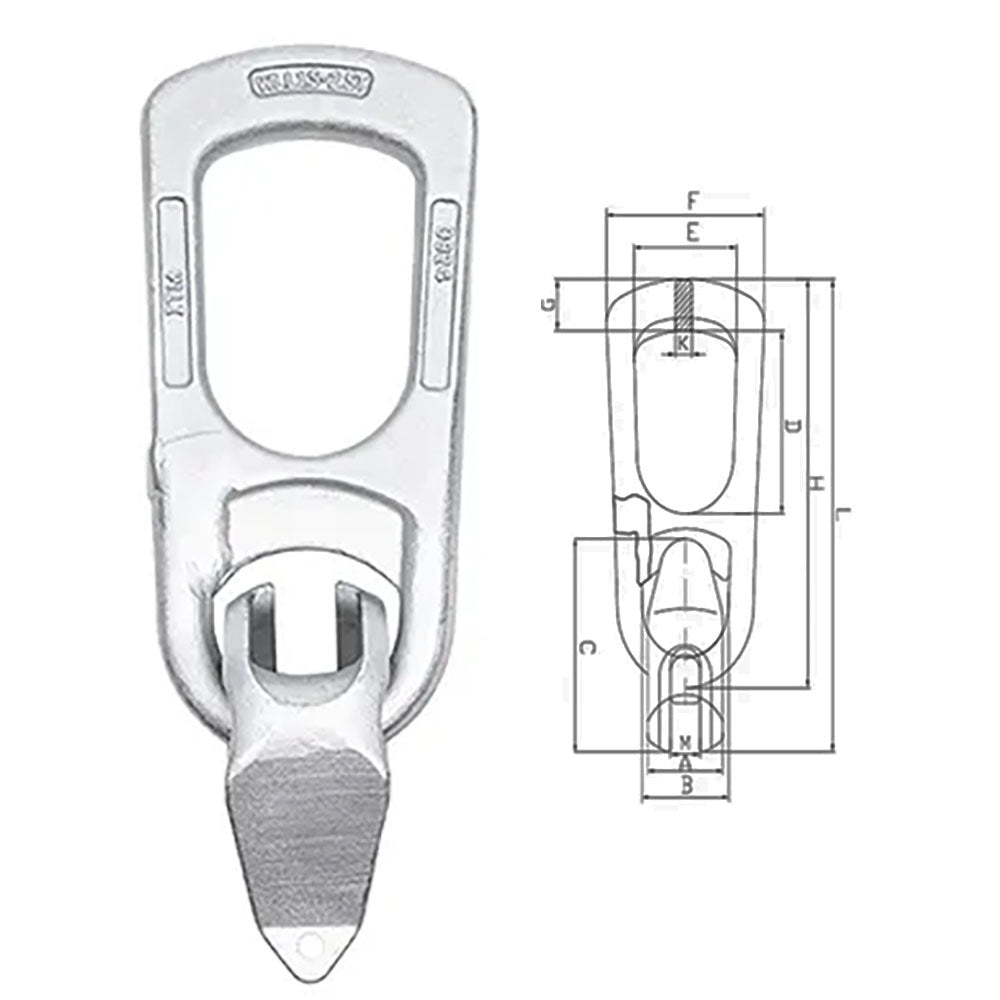

Specifications⢠W.L.L. (t): 1.3⢠B.L. (t): 5.2⢠Dimension A (mm): 33⢠Dimension B (mm): 42⢠Dimension C (mm): 80.4⢠Dimension D (mm): 70.5⢠Dimension E (mm): 45⢠Dimension F (mm): 73⢠Dimension H (mm): 160⢠Dimension M (mm): 11⢠Dimension L (mm): 186⢠Dimension G (mm): 20.5⢠Dimension K (mm): 12.5⢠Weight (kg): 0.89
Features⢠Specifically designed for lifting precast concreteelements with an embedded pin⢠Easily engages under load ensuring proper connection⢠Simple clutch release when lifting completed⢠Available in working load limits ranging from 1.3t to 20t⢠Tested and certified to AS 3850.1
Specifications⢠W.L.L. (t): 1.3⢠B.L. (t): 5.2⢠Dimension A (mm): 33⢠Dimension B (mm): 42⢠Dimension C (mm): 80.4⢠Dimension D (mm): 70.5⢠Dimension E (mm): 45⢠Dimension F (mm): 73⢠Dimension H (mm): 160⢠Dimension M (mm): 11⢠Dimension L (mm): 186⢠Dimension G (mm): 20.5⢠Dimension K (mm): 12.5⢠Weight (kg): 0.89
