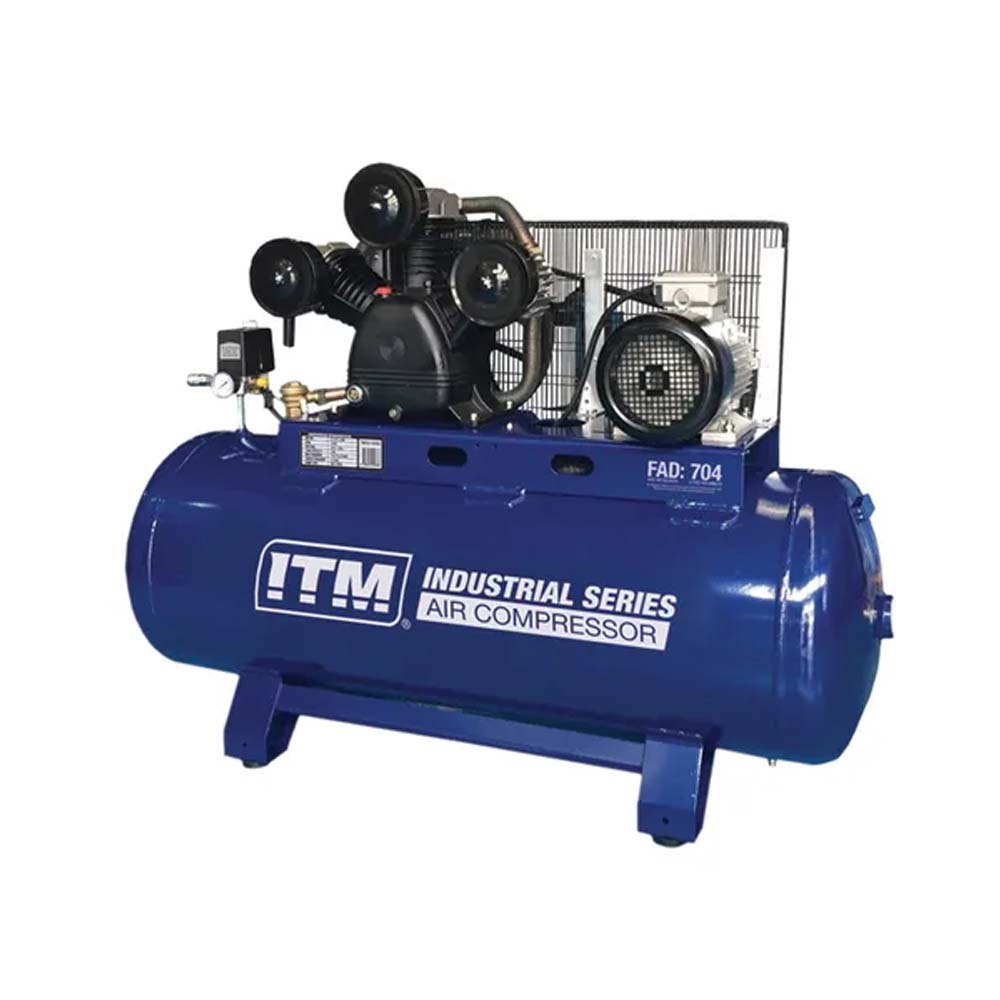

ITM Air Compressor Stationary 7.5HP | 270L | 3 Phase
ITM Air Compressor Stationary 7.5HP | 270L | 3 Phase
Regular price
$5,960.50 NZD
Regular price
Sale price
$5,960.50 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM353-75270 | ITM Air Compressor Stationary 7.5HP | 270L | 3Phase
FEATURES• Triple cast iron cylinder oil lubricated pump withaluminium head.• Powerful high efficiency induction motor.• Soft start valve for electric motor protection.• Thermal overload protection with manual reset.• Full brass non-return valve.• Certified safety valve.• Reliable Condor pressure switch.• Includes twin outlet one-touch “Nitto style” connectors.
SPECIFICATIONS• Motor: 7.5HP - Three Phase 415V• Tank Capacity: 270 L• Max Pressure: 147 PSI (10 Bar)• Pump Displacement: 909 L/min (32.1 CFM)• Free Air Delivery: 704 L/min (24.9 CFM)• Pump RPM: 1005• Package Dimensions: 161cm L x 62cm W x 131cm H• Compressor Dimensions: 155cm L x 54cm W x 112cm H
FEATURES• Triple cast iron cylinder oil lubricated pump withaluminium head.• Powerful high efficiency induction motor.• Soft start valve for electric motor protection.• Thermal overload protection with manual reset.• Full brass non-return valve.• Certified safety valve.• Reliable Condor pressure switch.• Includes twin outlet one-touch “Nitto style” connectors.
SPECIFICATIONS• Motor: 7.5HP - Three Phase 415V• Tank Capacity: 270 L• Max Pressure: 147 PSI (10 Bar)• Pump Displacement: 909 L/min (32.1 CFM)• Free Air Delivery: 704 L/min (24.9 CFM)• Pump RPM: 1005• Package Dimensions: 161cm L x 62cm W x 131cm H• Compressor Dimensions: 155cm L x 54cm W x 112cm H
