The Eagle Eye Supply Ltd

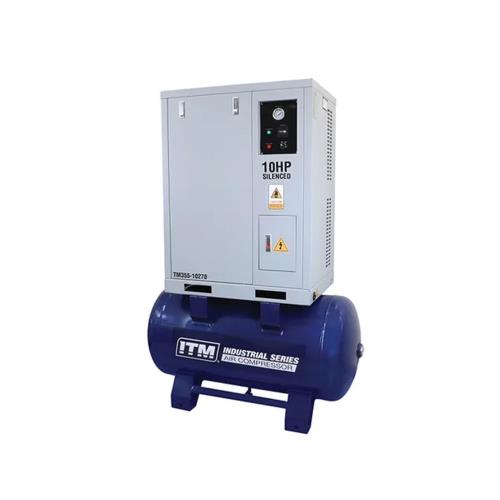

ITM Air Compressor, Silenced Cabinet 3 Phase, 10hp, 270L
ITM Air Compressor, Silenced Cabinet 3 Phase, 10hp, 270L
Regular price
$7,416.23 NZD
Regular price
Sale price
$7,416.23 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM355-10270 | ITM Air Compressor Silenced Cabinet 3 Phase10hp 270L Fad 1143 L/Min
FeaturesITM Silent Series Piston Compressors offer a convenientdesign to combine the quiet operation of a screw compressorwith the cost benefits of a traditional piston compressor.For situations where compressors are used extensively whilebeing installed close to the workplace the ITM silent rangeoffers an ideal match.
These pumps are designed to run at a slower speed to reducenoise and combine this with a sound proof cabinet compactdesign and easy to use control panel the range combinesultimate efficiency with user friendliness.• Triple cast iron cylinder oil lubricated pump withaluminium head• Powerful high efficiency induction motor• Soft start valve for electric motor protection• Thermal overload protection with manual reset• Full brass non-return valve• Certified safety valve• Reliable Condor pressure switch
Specifications• Motor: 10HP - Three Phase 415V• Tank Capacity: 270 L• Max Pressure: 147 PSI (10 Bar)• Pump Displacement: 1269 L/min (44.8 CFM)• Free Air Delivery: 960 L/min (33.9 CFM)• Pump RPM: 950• Noise: 65dB at 7m• Compressor Dimensions: 135cm L x 75cm W x 180cm H
FeaturesITM Silent Series Piston Compressors offer a convenientdesign to combine the quiet operation of a screw compressorwith the cost benefits of a traditional piston compressor.For situations where compressors are used extensively whilebeing installed close to the workplace the ITM silent rangeoffers an ideal match.
These pumps are designed to run at a slower speed to reducenoise and combine this with a sound proof cabinet compactdesign and easy to use control panel the range combinesultimate efficiency with user friendliness.• Triple cast iron cylinder oil lubricated pump withaluminium head• Powerful high efficiency induction motor• Soft start valve for electric motor protection• Thermal overload protection with manual reset• Full brass non-return valve• Certified safety valve• Reliable Condor pressure switch
Specifications• Motor: 10HP - Three Phase 415V• Tank Capacity: 270 L• Max Pressure: 147 PSI (10 Bar)• Pump Displacement: 1269 L/min (44.8 CFM)• Free Air Delivery: 960 L/min (33.9 CFM)• Pump RPM: 950• Noise: 65dB at 7m• Compressor Dimensions: 135cm L x 75cm W x 180cm H
