ITM 240V Electric Hoist-3 Ton-6 Meter Lift
ITM 240V Electric Hoist-3 Ton-6 Meter Lift
Regular price
$7,378.78 NZD
Regular price
Sale price
$7,378.78 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9001-03006 | ITM 240V Electric Hoist 3 Ton 6 Meter Lift
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Compact and light weight design⢠Weight overload limiter for safety⢠Thermal overload motor protection⢠Single phase 240V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied⢠Replacement Chain 7.1mm TM9810-01607-1
Specifications⢠Rated Capacity: 3 Tonne⢠Standard Lift: 6m⢠Running Test Load: 37.5kN⢠Motor: 1200w 240v 1P⢠No. of Chain Drops: 3⢠Chain Type: Grade 80 7.1mm⢠Lift Speed: 2m/min⢠Net Weight: 73kg⢠Extra Weight Per Metre Of Extra Lift: 3.3kg

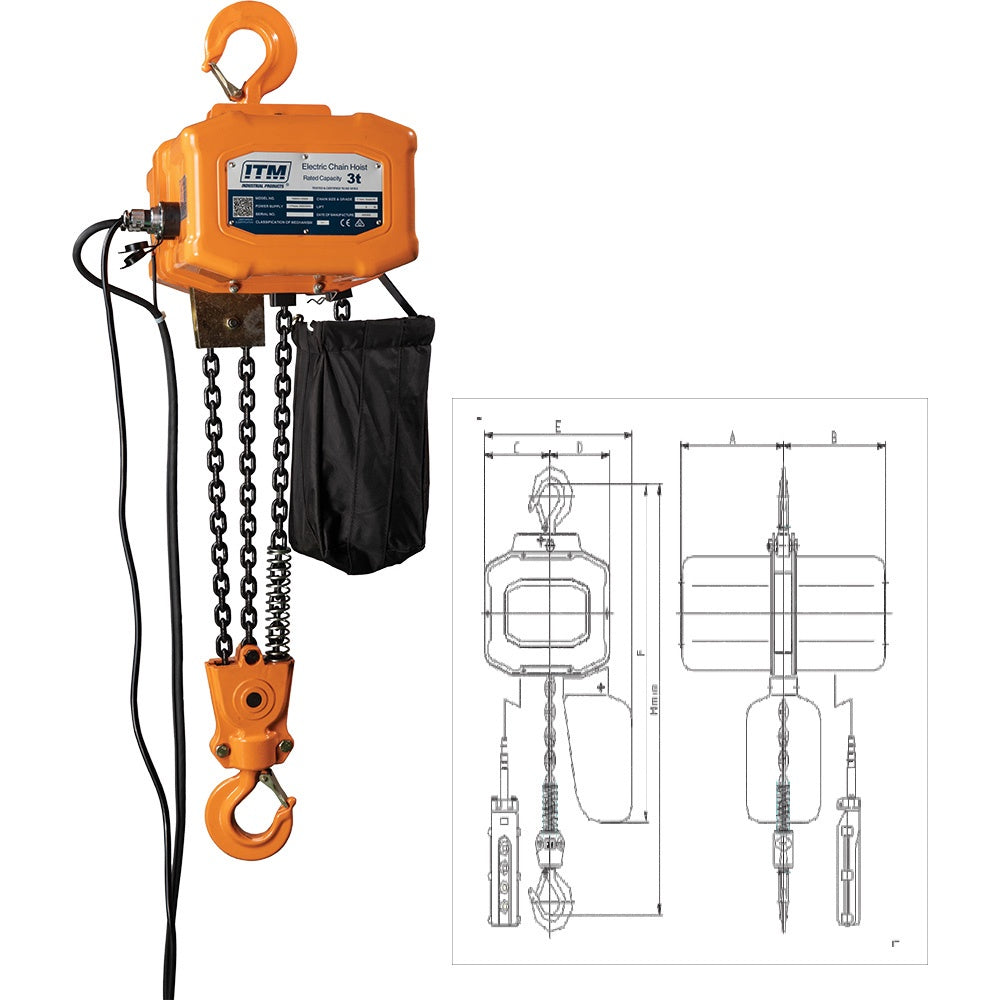

Dimensions (mm)⢠A: 245⢠B: 245⢠C: 124⢠D: 176⢠E: 350⢠F: 620⢠H: 710
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Compact and light weight design⢠Weight overload limiter for safety⢠Thermal overload motor protection⢠Single phase 240V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied⢠Replacement Chain 7.1mm TM9810-01607-1
Specifications⢠Rated Capacity: 3 Tonne⢠Standard Lift: 6m⢠Running Test Load: 37.5kN⢠Motor: 1200w 240v 1P⢠No. of Chain Drops: 3⢠Chain Type: Grade 80 7.1mm⢠Lift Speed: 2m/min⢠Net Weight: 73kg⢠Extra Weight Per Metre Of Extra Lift: 3.3kg
Dimensions (mm)⢠A: 245⢠B: 245⢠C: 124⢠D: 176⢠E: 350⢠F: 620⢠H: 710
