ITM 240V Electric Hoist-2 Ton-3 Meter Lift
ITM 240V Electric Hoist-2 Ton-3 Meter Lift
Regular price
$4,769.56 NZD
Regular price
Sale price
$4,769.56 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9001-02003 | ITM 240V Electric Hoist 2 Ton 3 Meter Lift
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Compact and light weight design⢠Weight overload limiter for safety⢠Thermal overload motor protection⢠Single phase 240V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied⢠Replacement Chain 7.1mm TM9810-01607-1
Specifications⢠Rated Capacity: 2 Tonne⢠Standard Lift: 3m⢠Running Test Load: 25kN⢠Motor: 1200w 240v 1P⢠No. of Chain Drops: 2⢠Chain Type: Grade 80 7.1mm⢠Lift Speed: 3m/min⢠Net Weight: 65kg⢠Extra Weight Per Metre Of Extra Lift: 2.2kg

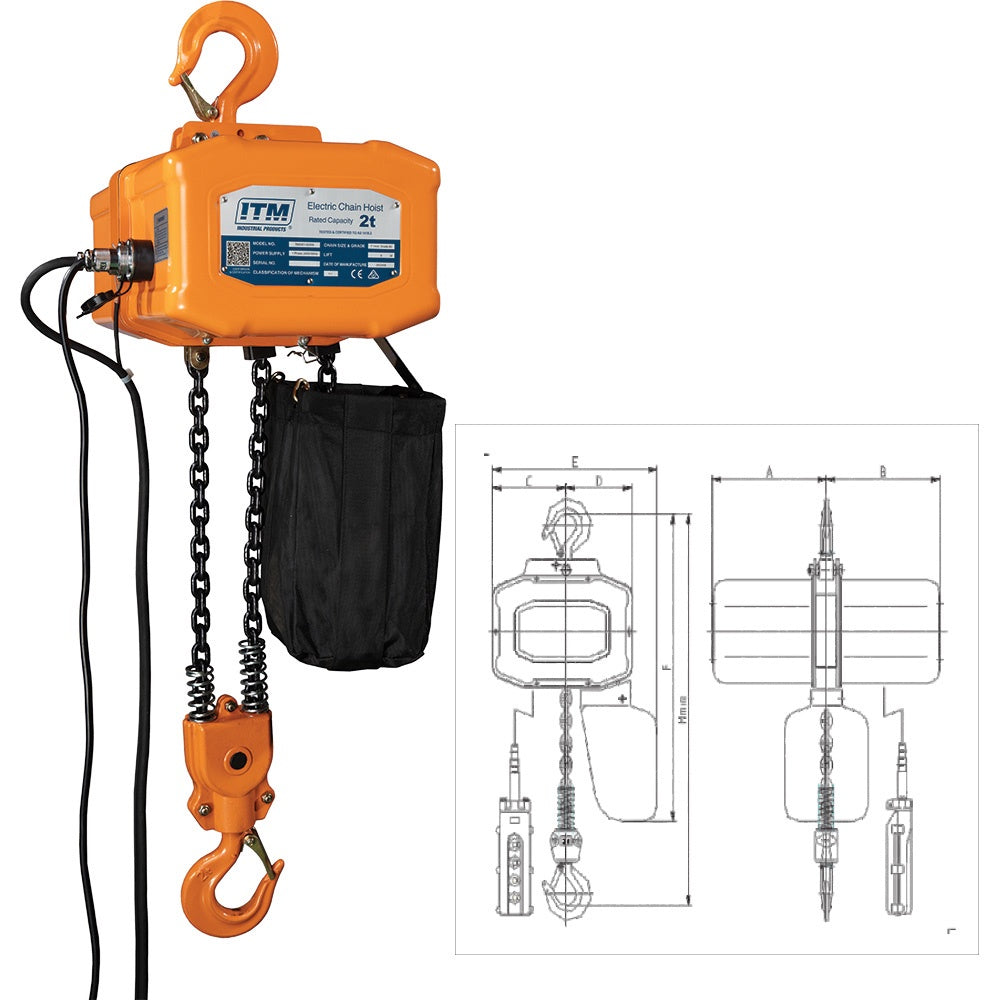

Dimensions (mm)⢠A: 245⢠B: 245⢠C: 124⢠D: 176⢠E: 350⢠F: 610⢠H: 630
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Compact and light weight design⢠Weight overload limiter for safety⢠Thermal overload motor protection⢠Single phase 240V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied⢠Replacement Chain 7.1mm TM9810-01607-1
Specifications⢠Rated Capacity: 2 Tonne⢠Standard Lift: 3m⢠Running Test Load: 25kN⢠Motor: 1200w 240v 1P⢠No. of Chain Drops: 2⢠Chain Type: Grade 80 7.1mm⢠Lift Speed: 3m/min⢠Net Weight: 65kg⢠Extra Weight Per Metre Of Extra Lift: 2.2kg
Dimensions (mm)⢠A: 245⢠B: 245⢠C: 124⢠D: 176⢠E: 350⢠F: 610⢠H: 630
