ITM 240V Electric Hoist-1 Ton-6 Meter Lift
ITM 240V Electric Hoist-1 Ton-6 Meter Lift
Regular price
$4,442.66 NZD
Regular price
Sale price
$4,442.66 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
TM9001-01006 | ITM 240V Electric Hoist 1 Ton 6 Meter Lift
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Compact and light weight design⢠Weight overload limiter for safety⢠Thermal overload motor protection⢠Single phase 240V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied⢠Replacement Chain 7.1mm TM9810-01607-1
Specifications⢠Rated Capacity: 1 Tonne⢠Standard Lift: 6m⢠Running Test Load: 12.5kN⢠Motor: 1200w 240v 1P⢠No. of Chain Drops: 1⢠Chain Type: Grade 80 7.1mm⢠Lift Speed: 6m/min⢠Net Weight: 60kg⢠Extra Weight Per Metre Of Extra Lift: 1.1kg

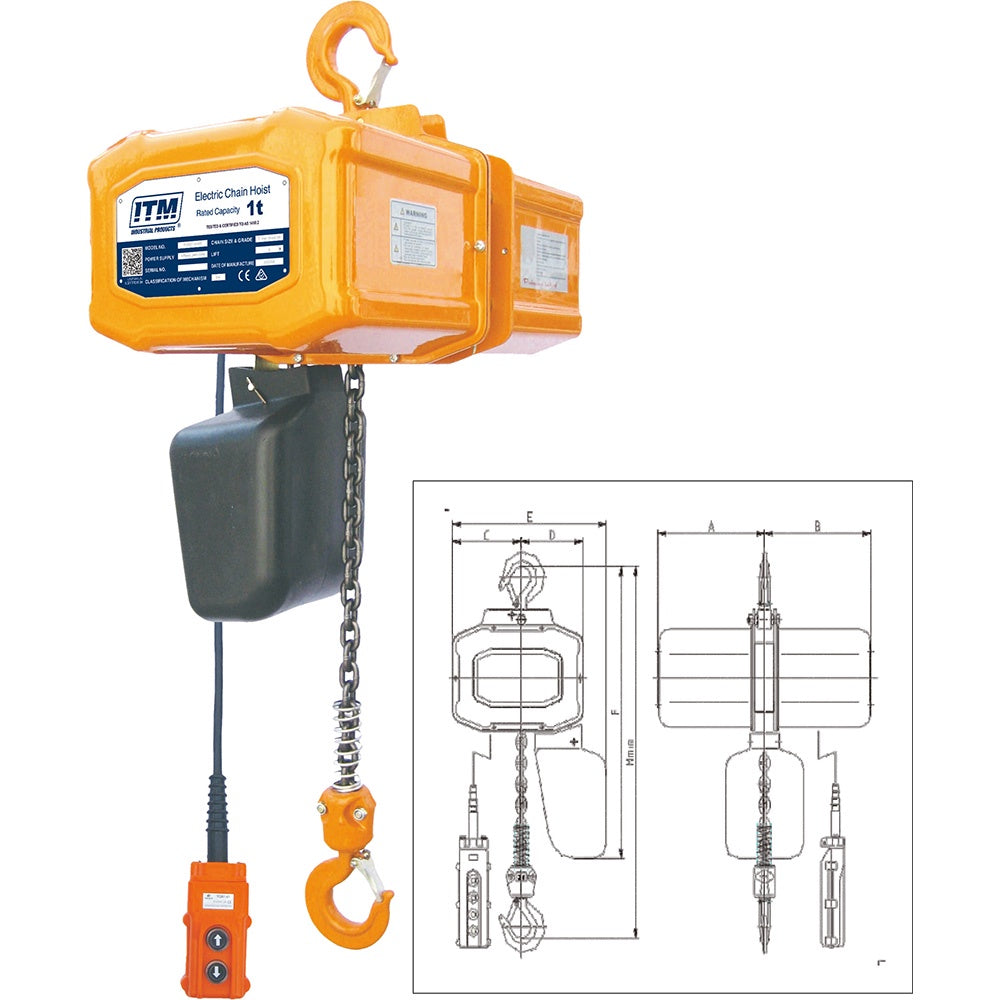

Dimensions (mm)⢠A: 245⢠B: 245⢠C: 158⢠D: 142⢠E: 350⢠F: 600⢠H: 520
Features⢠Japanese technology with dual braking system to ensuresafe and reliable operation⢠Compact and light weight design⢠Weight overload limiter for safety⢠Thermal overload motor protection⢠Single phase 240V motor⢠Upper and lower limit switches to prevent chain runout⢠Chain length can be altered by ITM to your required length⢠Tested & certified to AS 1418.2⢠Test certificate & user manual supplied⢠Replacement Chain 7.1mm TM9810-01607-1
Specifications⢠Rated Capacity: 1 Tonne⢠Standard Lift: 6m⢠Running Test Load: 12.5kN⢠Motor: 1200w 240v 1P⢠No. of Chain Drops: 1⢠Chain Type: Grade 80 7.1mm⢠Lift Speed: 6m/min⢠Net Weight: 60kg⢠Extra Weight Per Metre Of Extra Lift: 1.1kg
Dimensions (mm)⢠A: 245⢠B: 245⢠C: 158⢠D: 142⢠E: 350⢠F: 600⢠H: 520
