Holemaker

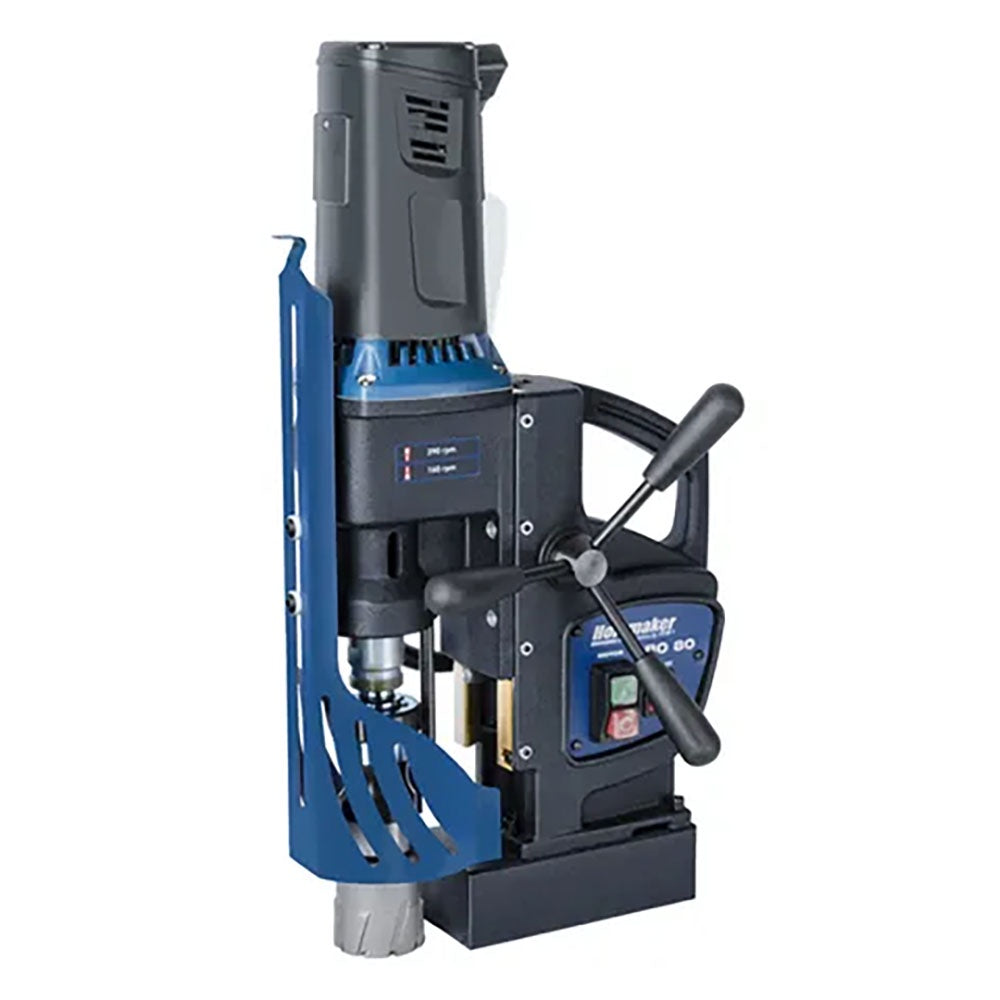

Holemaker PRO80 Magnetic Base Drill 240V 3MT
Holemaker PRO80 Magnetic Base Drill 240V 3MT
Regular price
$6,158.88 NZD
Regular price
Sale price
$6,158.88 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
HMPRO80 | Holemaker PRO80 Magnetic Base Drill 240V 3MT
FeaturesThe Holemaker PRO 80 is an extra heavy duty mid-sizedmachine capable of producing burr-free holes up to 80mmdiameter by 110mm depth. The 1500w motor with 2-speedmechanical gearbox produces superb torque through gearreduction in low speeds. No. 3 Morse Taper spindle bore foruse with taper shank drills tapping head (M30 Capacity) andtaper shank reamers.
Supplied complete with side mounted coolant system and arborfor use with ¾ shank Holemaker cutters up to 75mm diameterand 75mm depth of cut. Optional arbor to take 1-1/4 shankcutters up to 80mm diameter and 110mm depth.
⢠Lightweight for a large capacity machine only 18kg⢠Rigid casting designed to withstand firm downward drillingforce prolonging the machine and tooling life⢠New generation Italian made motor and heavy-duty 2 speedgearbox⢠Semi-automatic gib adjustment enables simple fastcorrect and repeatable slide backlash settings without anyexpert knowledge or experience⢠Magnetic Field Shape Control (MFSC) provides maximumholding power on thin materials⢠Magnetic Power Adhesion Control (MPAC) detects theadhesive force of the electromagnetic base and protects boththe machine and the operator from working on too thinworkpiece⢠2 Years Warranty
Specifications⢠Capacity (Diameter): 80mm⢠Capacity (Depth): 110mm⢠Capacity (Twist Drills): 25mm⢠Spindle Taper: MT3⢠Motor Power: 1500 Watt 240V Motor⢠Input Power: 1600 Watt⢠Speed: 2 speed heavy-duty gearbox 160/390rpm⢠Weight: 18kg⢠Magnetic Dead Lift: 11 000 N on 25mm steel plate⢠Stroke: 190mm⢠Height (Min./Max.): 476mm/666mm
FeaturesThe Holemaker PRO 80 is an extra heavy duty mid-sizedmachine capable of producing burr-free holes up to 80mmdiameter by 110mm depth. The 1500w motor with 2-speedmechanical gearbox produces superb torque through gearreduction in low speeds. No. 3 Morse Taper spindle bore foruse with taper shank drills tapping head (M30 Capacity) andtaper shank reamers.
Supplied complete with side mounted coolant system and arborfor use with ¾ shank Holemaker cutters up to 75mm diameterand 75mm depth of cut. Optional arbor to take 1-1/4 shankcutters up to 80mm diameter and 110mm depth.
⢠Lightweight for a large capacity machine only 18kg⢠Rigid casting designed to withstand firm downward drillingforce prolonging the machine and tooling life⢠New generation Italian made motor and heavy-duty 2 speedgearbox⢠Semi-automatic gib adjustment enables simple fastcorrect and repeatable slide backlash settings without anyexpert knowledge or experience⢠Magnetic Field Shape Control (MFSC) provides maximumholding power on thin materials⢠Magnetic Power Adhesion Control (MPAC) detects theadhesive force of the electromagnetic base and protects boththe machine and the operator from working on too thinworkpiece⢠2 Years Warranty
Specifications⢠Capacity (Diameter): 80mm⢠Capacity (Depth): 110mm⢠Capacity (Twist Drills): 25mm⢠Spindle Taper: MT3⢠Motor Power: 1500 Watt 240V Motor⢠Input Power: 1600 Watt⢠Speed: 2 speed heavy-duty gearbox 160/390rpm⢠Weight: 18kg⢠Magnetic Dead Lift: 11 000 N on 25mm steel plate⢠Stroke: 190mm⢠Height (Min./Max.): 476mm/666mm
