Holemaker

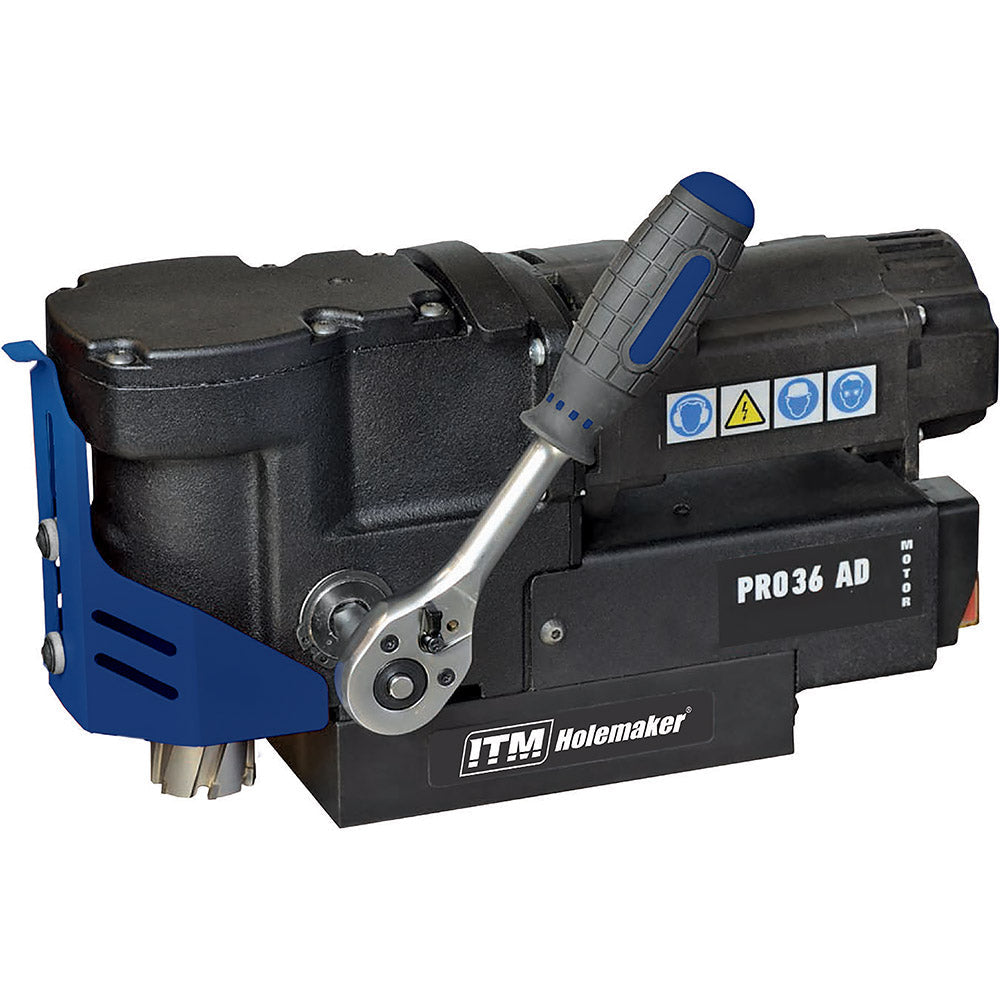

Holemaker PRO36AD Magnetic Base Angle Drill 240V
Holemaker PRO36AD Magnetic Base Angle Drill 240V
Regular price
$3,029.04 NZD
Regular price
Sale price
$3,029.04 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
HMPRO36AD | Holemaker PRO36AD Magnetic Base Angle Drill 240V
FeaturesThe PRO 36 AD is an ultra-low profile mag drill that fitsin the tightest of spots. Perfect solution for anyapplications in confined spaces where typical mag drillsare too large. A powerful motor and strong electromagneticbase enable drilling of holes up to 36mm diameter to a depthof up to 30mm (1-3/16 ).PRO-36 AD accepts both TCT and HSS cutters as well as twistdrill drills with 19 05 mm (3/4 ) Weldon shank.
• Ultra-low profile mag drill of 176mm height only.• Extremely low weight of just 9.5 kg (21 lbs).• Milling capacity up to 36 mm (1-7/16”).• Accepts also twist drills with 19 05 mm (3/4”) Weldonshank.• Stroke – 39 mm.• Integrated swarf guard.• Detachable feed lever (feat. ratchet) can be fixed fromeither side.• Lifting handle for easy transportation.• Cooling with a bottle
Specifications• Capacity ( Diameter ): 36mm• Capacity ( Depth ): 30mm• Capacity ( Twist Drill ): 12mm• Motor Power: 920 watt• Input Power: 1000 watt Single Phase 240V• Speed: 370rpm• Weight: 9.5kg• Magnetic Dead Lift: 8900Nm On 25mm Steel Plate• Stroke: 39mm• Height: 176mm Constant Working Height• Through Spindle Coolant System• Smart Magnet Technology To Ensure Sufficient MagneticAdhesion• Comes complete in plastic carry case
FeaturesThe PRO 36 AD is an ultra-low profile mag drill that fitsin the tightest of spots. Perfect solution for anyapplications in confined spaces where typical mag drillsare too large. A powerful motor and strong electromagneticbase enable drilling of holes up to 36mm diameter to a depthof up to 30mm (1-3/16 ).PRO-36 AD accepts both TCT and HSS cutters as well as twistdrill drills with 19 05 mm (3/4 ) Weldon shank.
• Ultra-low profile mag drill of 176mm height only.• Extremely low weight of just 9.5 kg (21 lbs).• Milling capacity up to 36 mm (1-7/16”).• Accepts also twist drills with 19 05 mm (3/4”) Weldonshank.• Stroke – 39 mm.• Integrated swarf guard.• Detachable feed lever (feat. ratchet) can be fixed fromeither side.• Lifting handle for easy transportation.• Cooling with a bottle
Specifications• Capacity ( Diameter ): 36mm• Capacity ( Depth ): 30mm• Capacity ( Twist Drill ): 12mm• Motor Power: 920 watt• Input Power: 1000 watt Single Phase 240V• Speed: 370rpm• Weight: 9.5kg• Magnetic Dead Lift: 8900Nm On 25mm Steel Plate• Stroke: 39mm• Height: 176mm Constant Working Height• Through Spindle Coolant System• Smart Magnet Technology To Ensure Sufficient MagneticAdhesion• Comes complete in plastic carry case
