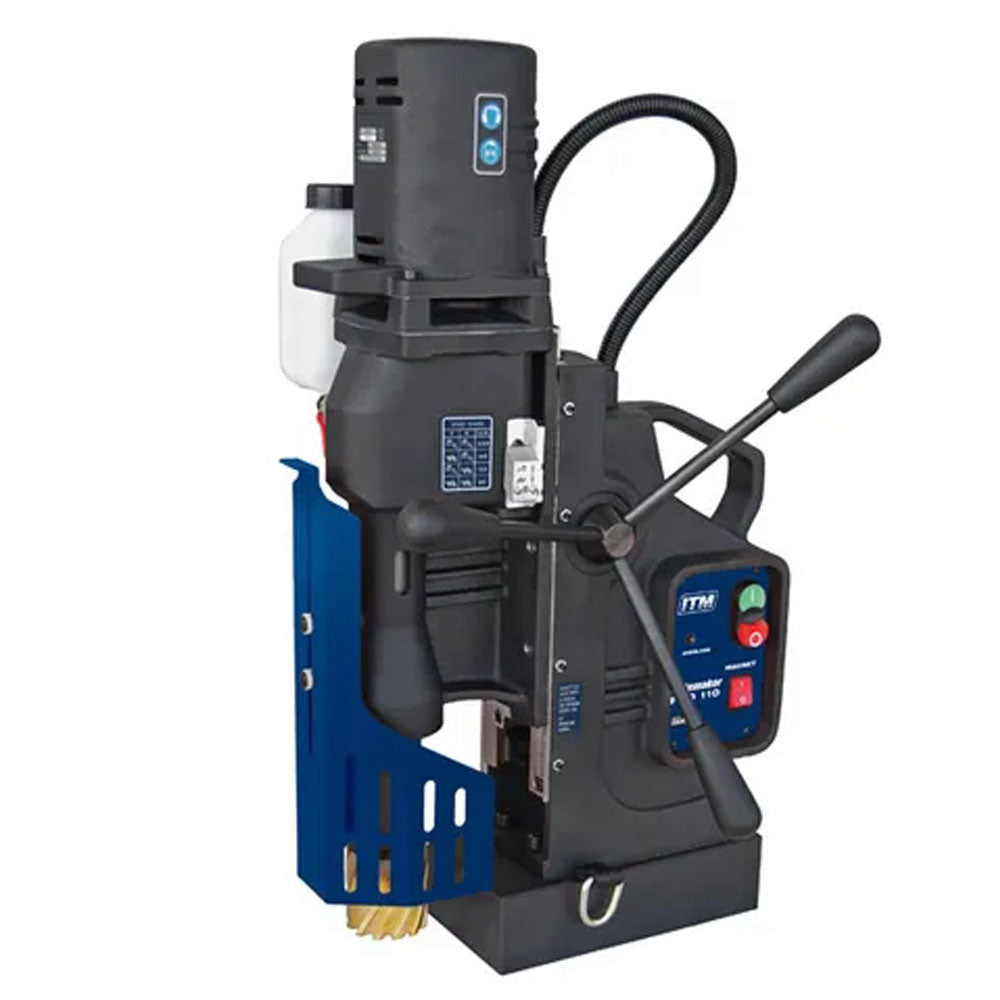

Holemaker PRO110 Magnetic Base Drill 1650W / 4-Speed
Holemaker PRO110 Magnetic Base Drill 1650W / 4-Speed
Regular price
$10,058.08 NZD
Regular price
Sale price
$10,058.08 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
HMPRO110 - HOLEMAKER PRO 110 MAGNETIC BASE DRILL 1650W /4-SPEED
• The Holemaker PRO 110 is an extra heavy duty largecapacity machine capable of producing burr-free holes up to110mm diameter by 110mm depth.• 1650w motor with 4-speed mechanical gearbox producessuperb torque through gear reduction in low speeds.• #4 morse taper spindle bore for use with taper shankdrills.• Supplied complete with side mounted coolant system andarbor for use with 3/4” shank Holemaker Cutters up to 75mmdiameter by 75mm depth of cut.• Optional arbor to take 1-1/4 shank cutters up to 110mmdiameter by 110mm depth. 1L pressure feed coolant bottleavailable.
SPECIFICATIONSCapacity (Diameter - max) 110mmCapacity (Depth of Cut - max) 110mmCapacity ( Twist Drills) #4 Morse Taper 47mmMotor Input Power 1800 WattMotor Output Power 1650 WattGearbox 4 SpeedHeavy Duty 85/135/160/250RPMMagnet Dead Lift 22000nmWeight 31.0kg
• The Holemaker PRO 110 is an extra heavy duty largecapacity machine capable of producing burr-free holes up to110mm diameter by 110mm depth.• 1650w motor with 4-speed mechanical gearbox producessuperb torque through gear reduction in low speeds.• #4 morse taper spindle bore for use with taper shankdrills.• Supplied complete with side mounted coolant system andarbor for use with 3/4” shank Holemaker Cutters up to 75mmdiameter by 75mm depth of cut.• Optional arbor to take 1-1/4 shank cutters up to 110mmdiameter by 110mm depth. 1L pressure feed coolant bottleavailable.
SPECIFICATIONSCapacity (Diameter - max) 110mmCapacity (Depth of Cut - max) 110mmCapacity ( Twist Drills) #4 Morse Taper 47mmMotor Input Power 1800 WattMotor Output Power 1650 WattGearbox 4 SpeedHeavy Duty 85/135/160/250RPMMagnet Dead Lift 22000nmWeight 31.0kg
