Groz 5pc Wiggler / Centre Finder Set

GROZ WRIGGLER / CENTER FINDER

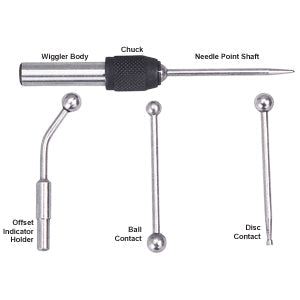

Wiggler/Center finder with its four interchangeableattachments is a versatile tool that finds application inmany places
The attachments can be snapped onto the chuck withoutremoving the collet nut and are clamped by a ball swiveljoint which permits adjustment to an angular position
With needle point shark working centers can be accuratelylocated. Spring tension on the ball of the point permitsguiding the point to true concentricity bringing perfectalignment between the work and machine spindle
Wiggler with Ball Contact is useful in locating work byfirst bringing the ball contact against the work and thenindexing it to the desired position relative to the spindle
Wiggler with Disc Contact is particularly useful in locatingwork in confined areas such as slots or shallow holes.Diameter of Disc. 0.1 (2.5mm)
Wiggler with Offset Indicator holder is useful for checkingrun out or concentricity and in checking straightness oralignment of flat surfaces
