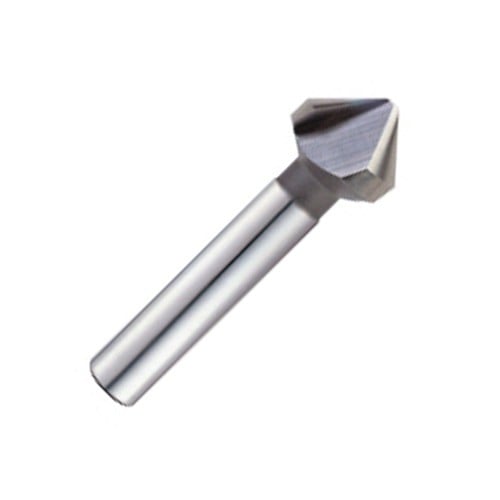

COUNTERSINK 3 Flute 6.3
COUNTERSINK 3 Flute 6.3
Regular price
$17.60 NZD
Regular price
Sale price
$17.60 NZD
Unit price
per
Taxes included.
Couldn't load pickup availability
54 Deg 3 Flute for smooth cutting (90 Degrees) Countersink for all Materials HSS with TICN Coating
| ITEM # | BRANDNAME: | MANUFACTURERNO: |
| YG19901266 | YG1 | 9901266 |
Product Specifications
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Coating | TICN |
| Cutting Diameter (DC) | 6.3 mm | Cutting Edge Material | HSS |
| Overall Length (OAL) | 45 mm | Length Chip Flute (LCF) | - |
| Shank Length (LS) | - | Cutting Diameter Maximum (DCX) | 6.3 mm |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Cutting Diameter Minimum (DCN) | 1.5 mm |
| Flute Count (NOF) | 3 | Unit | M |
| Point Angle (SIG) | 90 deg |
Product Features
| FamilyName C1339 |
| PackSize 1 |
| Family Description 54 Deg 3 Flute for smooth cutting (90 Degrees) Countersink for all Materials HSS with TICN Coating |
| Remarks C1339063 |
