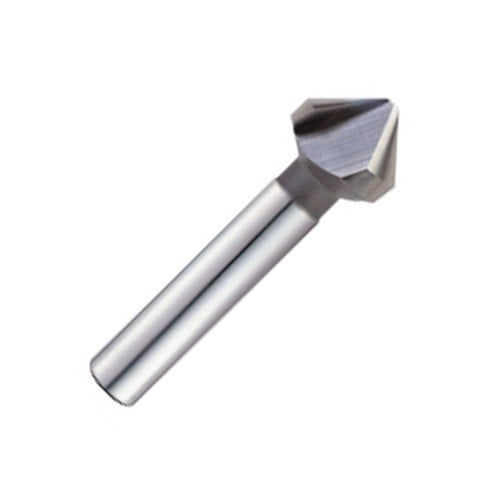

COUNTERSINK 3 Flute 40.0

$227.01 NZD

Sale Sold out

Taxes included.

Brand YG1

Quantity

\n \n52 Deg 3 Flute for smooth cutting (90 Degrees) Countersink for all Materials HSS with TICN Coating \n \n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n

ITEM #	BRANDNAME:	MANUFACTURERNO:
YG19901654	YG1	9901654

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \|	Coating	TICN
Cutting Diameter (DC)	40 mm	Cutting Edge Material	HSS
Overall Length (OAL)	115 mm	Length Chip Flute (LCF)	-
Shank Length (LS)	-	Cutting Diameter Maximum (DCX)	40 mm
Connection Diameter Machine Side (DCONMS)	16 mm	Cutting Diameter Minimum (DCN)	4.5 mm
Flute Count (NOF)	3	Unit	M
Point Angle (SIG)	90 deg

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

FamilyName \nC1339
PackSize \n1
Family Description \n52 Deg 3 Flute for smooth cutting (90 Degrees) Countersink for all Materials HSS with TICN Coating
Remarks \nC1339400
