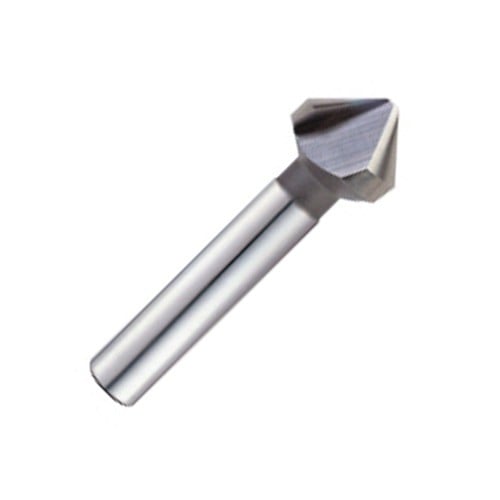

COUNTERSINK 3 Flute 20.5

$47.15 NZD

Sale Sold out

Taxes included.

Brand YG1

Quantity

\n \n48 Deg 3 Flute for smooth cutting (90 Degrees) Countersink for all Materials HSS with TICN Coating \n \n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n

ITEM #	BRANDNAME:	MANUFACTURERNO:
YG19901271	YG1	9901271

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \|	Coating	TICN
Cutting Diameter (DC)	20.5 mm	Cutting Edge Material	HSS
Overall Length (OAL)	63 mm	Length Chip Flute (LCF)	-
Shank Length (LS)	-	Cutting Diameter Maximum (DCX)	20.5 mm
Connection Diameter Machine Side (DCONMS)	10 mm	Cutting Diameter Minimum (DCN)	3.5 mm
Flute Count (NOF)	3	Unit	M
Point Angle (SIG)	90 deg

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

FamilyName \nC1339
PackSize \n1
Family Description \n48 Deg 3 Flute for smooth cutting (90 Degrees) Countersink for all Materials HSS with TICN Coating
Remarks \nC1339205
