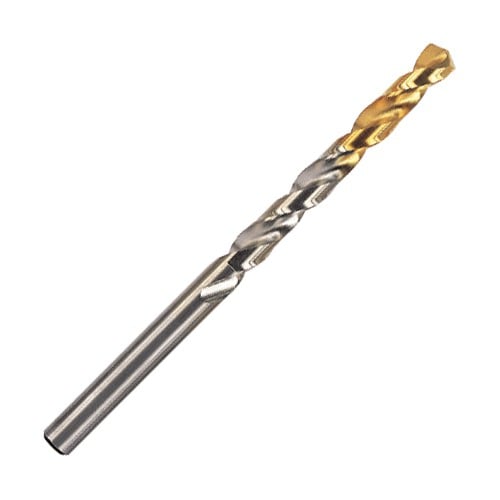

3.4mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose

$3.40 NZD

Sale Sold out

Taxes included.

Brand YG1

Quantity

\n \nHSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose \n \n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n

ITEM #	BRANDNAME:	MANUFACTURERNO:
YG19900415	YG1	9900415

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Drill Bit Size / Cutting Diameter (DC)	3.4 mm	Usable Length (LU)	19 mm
Connection Diameter Machine Side (DCONMS)	3.4 mm	Length Group	5D
Overall Length (OAL)	70 mm	Cutting Depth	19 mm
Cutting Edge Material	HSS-E Gold-P TiN	Flute Length	39 mm
Coating	TiN	Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast iron \| Tool Steel \| Aluminium \| Non Ferrous \|	Point Shape	Split Point
Coolant Supply Property (CSP)	N/A	LocalField11	DLGP195034

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

FamilyName \nDLGP195
PackSize \n1
Family Description \nHSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
Remarks \nDLGP195034
