The Eagle Eye Supply Ltd

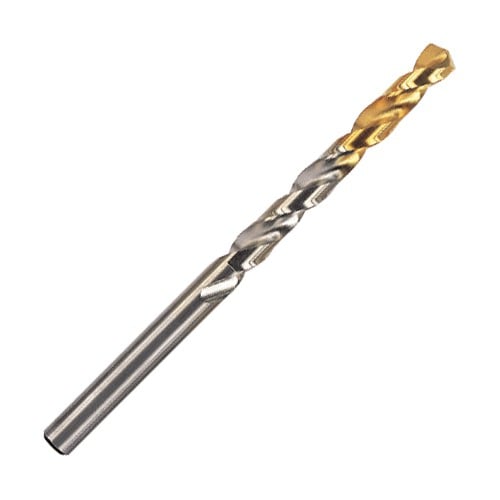

2.8mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
2.8mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
Regular price
$3.20 NZD
Regular price
Sale price
$3.20 NZD
Unit price
per
Taxes included.
Couldn't load pickup availability
HSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Pu
| ITEM # | BRANDNAME: | MANUFACTURERNO: |
| YG19900411 | YG1 | 9900411 |
Product Specifications
| Drill Bit Size / Cutting Diameter (DC) | 2.8 mm | Usable Length (LU) | 15 mm |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Length Group | 5D |
| Overall Length (OAL) | 61 mm | Cutting Depth | 15 mm |
| Cutting Edge Material | HSS-E Gold-P TiN | Flute Length | 33 mm |
| Coating | TiN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast iron | Tool Steel | Aluminium | Non Ferrous | | Point Shape | Split Point |
| Coolant Supply Property (CSP) | N/A | LocalField11 | DLGP195028 |
Product Features
| FamilyName \nDLGP195 |
| PackSize \n1 |
| Family Description \nHSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose |
| Remarks \nDLGP195028 |
