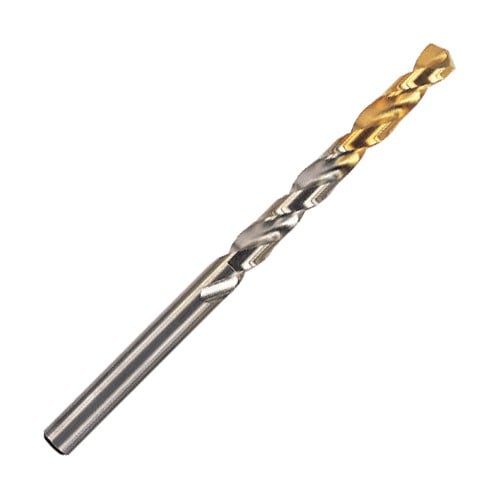

13.8mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
13.8mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
Regular price
$32.20 NZD
Regular price
Sale price
$32.20 NZD
Unit price
per
Taxes included.
Couldn't load pickup availability
HSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
| ITEM # | BRANDNAME: | MANUFACTURERNO: |
| YG19900138 | YG1 | 9900138 |
Product Specifications
| Drill Bit Size / Cutting Diameter (DC) | 13.8 mm | Usable Length (LU) | 108 mm |
| Connection Diameter Machine Side (DCONMS) | 13.8 mm | Length Group | 5D |
| Overall Length (OAL) | 160 mm | Cutting Depth | 108 mm |
| Cutting Edge Material | HSS-E Gold-P TiN | Flute Length | 108 mm |
| Coating | TiN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast iron | Tool Steel | Aluminium | Non Ferrous | | Point Shape | Split Point |
| Coolant Supply Property (CSP) | N/A |
Product Features
| FamilyName \nDLGP195 |
| PackSize \n1 |
| Family Description \nHSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose |
| Remarks \nDL195138 |
