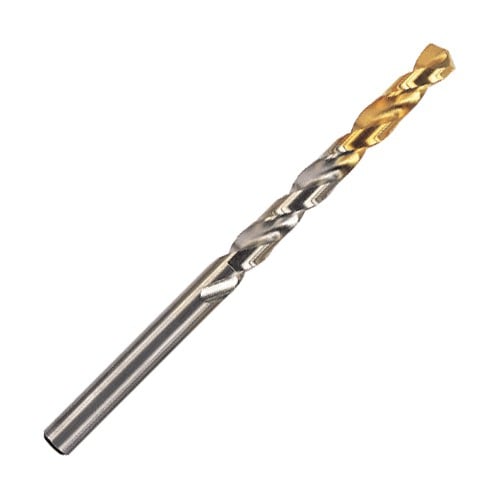

12.9mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
12.9mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
Regular price
$30.20 NZD
Regular price
Sale price
$30.20 NZD
Unit price
per
Taxes included.
Couldn't load pickup availability
HSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
| ITEM # | BRANDNAME: | MANUFACTURERNO: |
| YG19900367 | YG1 | 9900367 |
Product Specifications
| Drill Bit Size / Cutting Diameter (DC) | 12.9 mm | Usable Length (LU) | 65 mm |
| Connection Diameter Machine Side (DCONMS) | 12.9 mm | Length Group | 5D |
| Overall Length (OAL) | 151 mm | Cutting Depth | 65 mm |
| Cutting Edge Material | HSS-E Gold-P TiN | Flute Length | 101 mm |
| Coating | TiN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast iron | Tool Steel | Aluminium | Non Ferrous | | Point Shape | Split Point |
| Coolant Supply Property (CSP) | N/A | LocalField11 | DLGP195129 |
Product Features
| FamilyName DLGP195 |
| PackSize 1 |
| Family Description HSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose |
| Remarks DLGP195129 |
