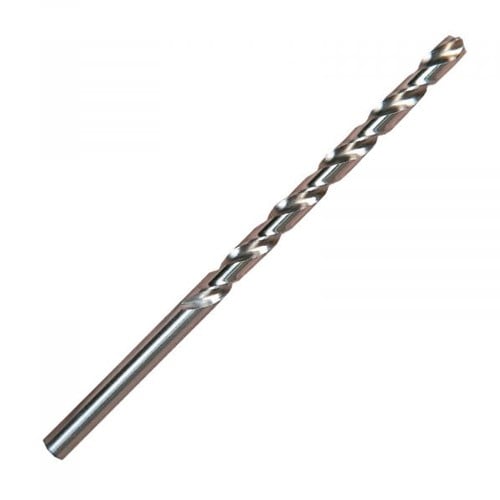

11.5mm Long Series Drill 135 degree Point Grind Jobber General Purpose
11.5mm Long Series Drill 135 degree Point Grind Jobber General Purpose
Regular price
$23.92 NZD
Regular price
Sale price
$23.92 NZD
Unit price
per
Taxes included.
Couldn't load pickup availability
HSSCo8 Long Series Drill 135 degree Point Grind Jobber General Purpose
| ITEM # | BRANDNAME: | MANUFACTURERNO: |
| YG19900790 | YG1 | 9900790 |
Product Specifications
| Drill Bit Size / Cutting Diameter (DC) | 11.5 mm | Usable Length (LU) | 128 mm |
| Connection Diameter Machine Side (DCONMS) | 11.5 mm | Length Group | 8D |
| Overall Length (OAL) | 195 mm | Cutting Depth | 128 mm |
| Cutting Edge Material | HSSCo8 | Flute Length | 128 mm |
| Coating | Uncoated | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast iron | Tool Steel | Aluminium | Non Ferrous | | Point Shape | Split Point |
| Coolant Supply Property (CSP) | N/A |
Product Features
| FamilyName D210 |
| PackSize 5 |
| Family Description HSSCo8 Long Series Drill 135 degree Point Grind Jobber General Purpose |
| Remarks D2104115 |
