10.4mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
10.4mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
Regular price
$18.20 NZD
Regular price
Sale price
$18.20 NZD
Unit price
per
Taxes included.
Couldn't load pickup availability

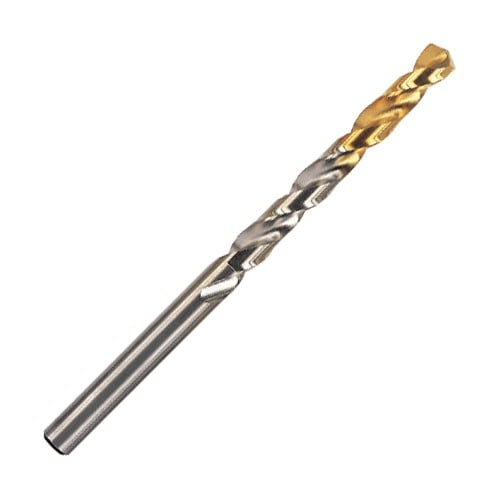

HSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose
| ITEM # | BRANDNAME: | MANUFACTURERNO: |
| YG19900125 | YG1 | 9900125 |
Product Specifications
| Drill Bit Size / Cutting Diameter (DC) | 10.4 mm | Usable Length (LU) | 53 mm |
| Connection Diameter Machine Side (DCONMS) | 10.4 mm | Length Group | 5D |
| Overall Length (OAL) | 133 mm | Cutting Depth | 53 mm |
| Cutting Edge Material | HSS-E Gold-P TiN | Flute Length | 87 mm |
| Coating | TiN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast iron | Tool Steel | Aluminium | Non Ferrous | | Point Shape | Split Point |
| Coolant Supply Property (CSP) | N/A | LocalField11 | DLGP195104 |
Product Features
| FamilyName \nDLGP195 |
| PackSize \n1 |
| Family Description \nHSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose |
| Remarks \nDLGP195104 |
