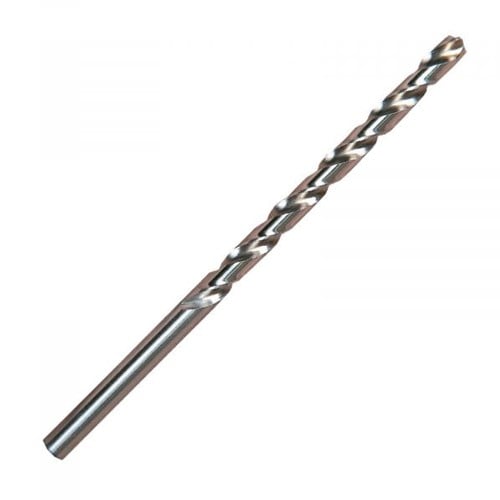

10.2mm Long Series Drill 135 degree Point Grind Jobber General Purpose

$19.44 NZD

Sale Sold out

Taxes included.

Brand YG1

Quantity

\n \nHSSCo8 Long Series Drill 135 degree Point Grind Jobber General Purpose \n \n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n

ITEM #	BRANDNAME:	MANUFACTURERNO:
YG19904170	YG1	9904170

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Drill Bit Size / Cutting Diameter (DC)	10.2 mm	Usable Length (LU)	121 mm
Connection Diameter Machine Side (DCONMS)	10.2 mm	Length Group	8D
Overall Length (OAL)	184 mm	Cutting Depth	121 mm
Cutting Edge Material	HSSCo8	Flute Length	121 mm
Coating	Uncoated	Measurement Type	Metric
Applicable Material	\| Steel \| Stainless Steel \| Cast iron \| Tool Steel \| Aluminium \| Non Ferrous \|	Point Shape	Split Point
Coolant Supply Property (CSP)	N/A

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

FamilyName \nD210
PackSize \n5
Family Description \nHSSCo8 Long Series Drill 135 degree Point Grind Jobber General Purpose
Remarks \nD2104102
