The Eagle Eye Supply Ltd

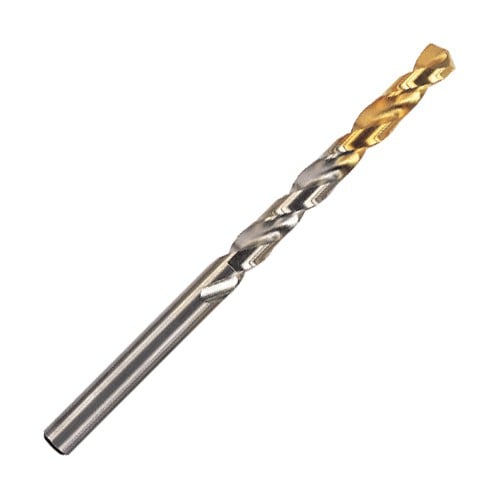

1.7mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose

1.7mm GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose

Regular price $3.20 NZD
Regular price Sale price $3.20 NZD
Sale Sold out
Taxes included.
Brand
HSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose

ITEM # BRANDNAME: MANUFACTURERNO:
YG19900404 YG1 9900404





Product Specifications

Drill Bit Size / Cutting Diameter (DC) 1.7 mm Usable Length (LU) 9 mm
Connection Diameter Machine Side (DCONMS) 1.7 mm Length Group 5D
Overall Length (OAL) 43 mm Cutting Depth 9 mm
Cutting Edge Material HSS-E Gold-P TiN Flute Length 20 mm
Coating TiN Measurement Type Metric
Applicable Material | Steel | Stainless Steel | Cast iron | Tool Steel | Aluminium | Non Ferrous | Point Shape Split Point
Coolant Supply Property (CSP) N/A LocalField11 DLGP195017





Product Features

FamilyName

DLGP195

PackSize

1

Family Description

HSS-E GOLD DRILL 135 degree Point Grind Jobber TiN Coated General Purpose

Remarks

DLGP195017
